NXH450N65L4Q2F2PG
650V 450A 3-LEVEL NPC INVERTER MManufacturer: onsemi
Categories: IGBT Modules
Quality Control: Learn More

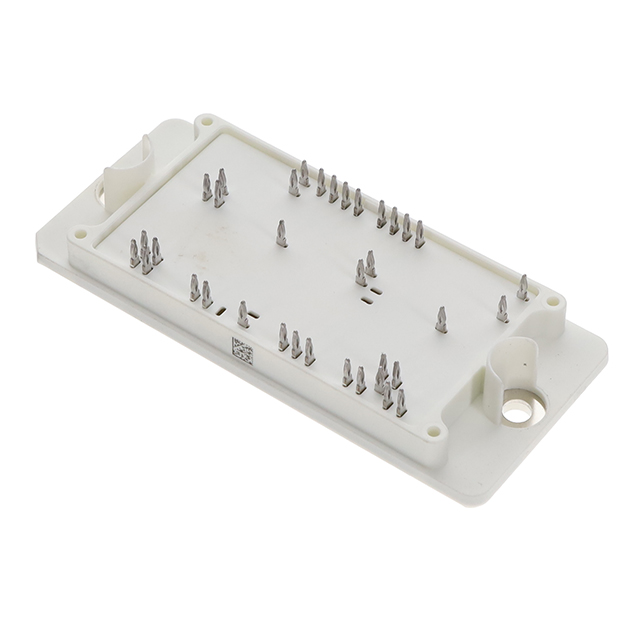

The onsemi NXH450N65L4Q2F2PG is a 650V, 3-level NPC inverter IGBT module designed for high-power applications. Featuring Trench Field Stop IGBT technology, this component offers a robust 167A collector current (Ic) and a maximum power dissipation of 365W. The module is suitable for chassis mounting and comes in a 36-PIM/Q2PACK (93x47) package. Its low Vce(on) of 2.2V at 15V/225A ensures efficient power conversion. With a junction temperature rating of 150°C, this device is engineered for demanding environments. Applications include industrial motor drives, renewable energy inverters, and power factor correction systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 11 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Three Level Inverter |
| Operating Temperature | 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.2V @ 15V, 225A |
| NTC Thermistor | No |
| Supplier Device Package | 36-PIM/Q2PACK (93x47) |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 167 A |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Power - Max | 365 W |
| Current - Collector Cutoff (Max) | 300 µA |
| Input Capacitance (Cies) @ Vce | 14630 pF @ 20 V |
