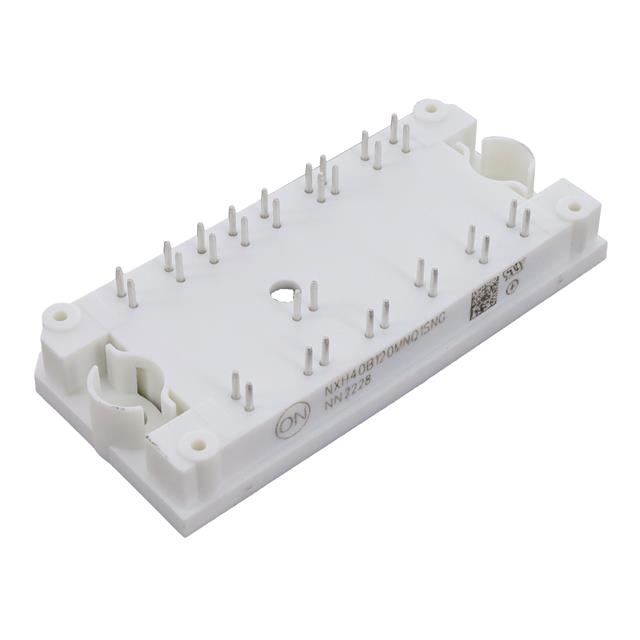

NXH40B120MNQ1SNG
30KW Q1BOOST FULL SICManufacturer: onsemi
Categories: IGBT Modules
Quality Control: Learn More
IGBT Module Triple, Dual - Common Source 156 W Chassis Mount 32-PIM (71x37.4)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Triple, Dual - Common Source |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | - |
| NTC Thermistor | Yes |
| Supplier Device Package | 32-PIM (71x37.4) |
| IGBT Type | - |
| Power - Max | 156 W |
| Input Capacitance (Cies) @ Vce | 3.227 nF @ 800 V |
Request a Quote
