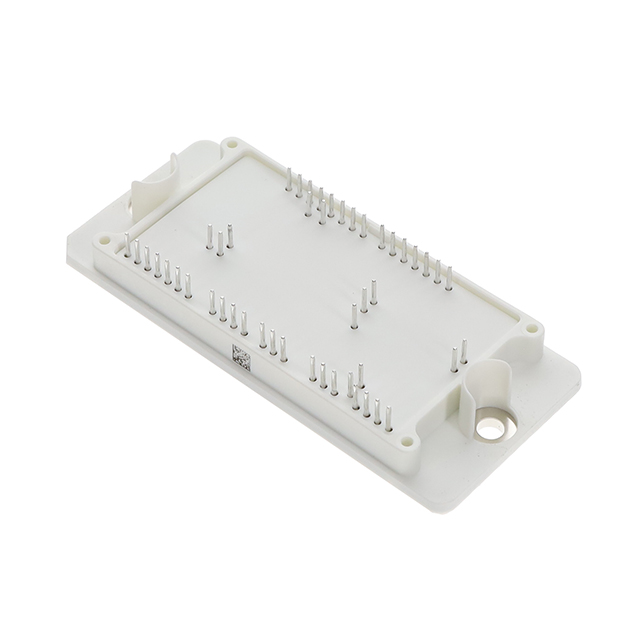

NXH400N100L4Q2F2SG
ESS 200KW PIM SOLDER PINManufacturer: onsemi
Categories: IGBT Modules
Quality Control: Learn More
The onsemi NXH400N100L4Q2F2SG is a Trench Field Stop IGBT Module designed for high-power inverter applications. This module features a three-level inverter configuration, capable of handling a collector emitter breakdown voltage of 1000 V and a continuous collector current of 360 A. With a maximum power dissipation of 980 W and a low saturation voltage (Vce(on)) of 2.2V at 15V gate-emitter voltage and 400A collector current, it offers efficient power conversion. The NXH400N100L4Q2F2SG includes an integrated NTC thermistor for thermal monitoring and operates across a wide junction temperature range of -40°C to 175°C. Its robust design is suitable for demanding applications in electric vehicle powertrains and industrial motor drives. The module is supplied in a 48-PIM/Q2PACK (93x47) package for chassis mounting.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Three Level Inverter |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.2V @ 15V, 400A |
| NTC Thermistor | Yes |
| Supplier Device Package | 48-PIM/Q2PACK (93x47) |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 360 A |
| Voltage - Collector Emitter Breakdown (Max) | 1000 V |
| Power - Max | 980 W |
| Current - Collector Cutoff (Max) | 25 µA |
| Input Capacitance (Cies) @ Vce | 26.06 nF @ 20 V |
