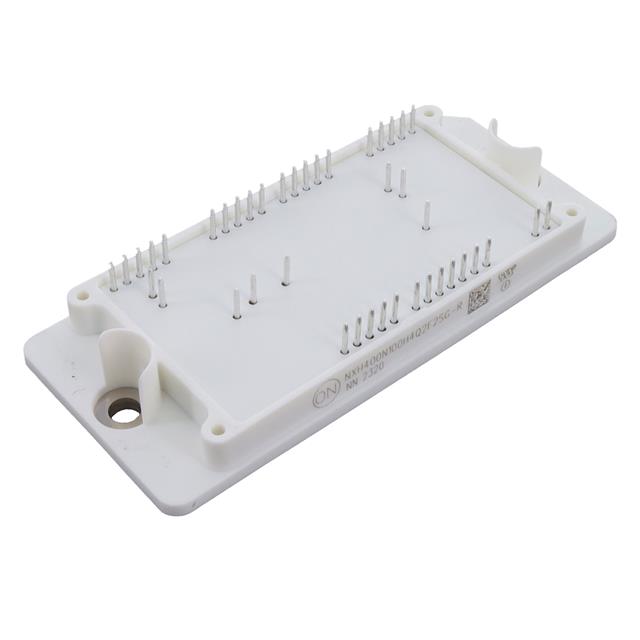

NXH400N100H4Q2F2SG-R
MASS MARKET 250KW 1500V Q2 PACKManufacturer: onsemi
Categories: IGBT Modules
Quality Control: Learn More
The onsemi NXH400N100H4Q2F2SG-R is a Trench Field Stop IGBT module designed for high-power applications. This module features a three-level inverter configuration and offers a maximum collector-emitter voltage of 1000V, with a continuous collector current capability of 409A. The device boasts a maximum power dissipation of 959W and a low on-state voltage of 2.3V at 15V gate-emitter voltage and 400A collector current. Input capacitance (Cies) is specified at 26.093 nF at 20V. The NXH400N100H4Q2F2SG-R is chassis mountable, utilizing the 42-PIM/Q2PACK (93x47) package. It includes an integrated NTC thermistor for temperature monitoring and operates across a wide temperature range of -40°C to 175°C (TJ). This component finds application in industries such as renewable energy, industrial motor drives, and electric vehicle powertrains.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: Last Time BuyPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Three Level Inverter |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.3V @ 15V, 400A |
| NTC Thermistor | Yes |
| Supplier Device Package | 42-PIM/Q2PACK (93x47) |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 409 A |
| Voltage - Collector Emitter Breakdown (Max) | 1000 V |
| Power - Max | 959 W |
| Current - Collector Cutoff (Max) | 500 µA |
| Input Capacitance (Cies) @ Vce | 26.093 nF @ 20 V |
