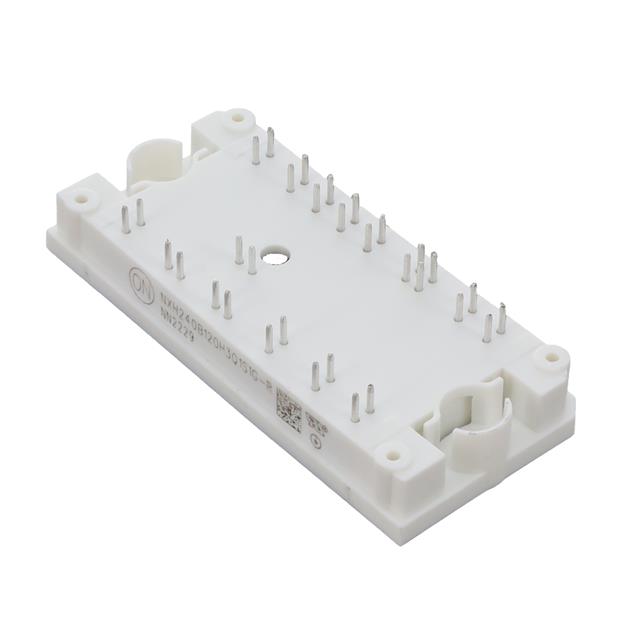

NXH240B120H3Q1S1G-R
150KW 110V Q1BOOST SOLDER PINManufacturer: onsemi
Categories: IGBT Modules
Quality Control: Learn More
The onsemi NXH240B120H3Q1S1G-R is a Trench Field Stop IGBT module designed for demanding power applications. This three-level inverter configuration offers a 1200 V collector-emitter breakdown voltage and a continuous collector current of 92 A. Key electrical characteristics include a maximum on-state voltage of 2.7 V at 15 V gate-emitter voltage and 80 A collector current, with a low collector cutoff current of 150 µA. The module features a chassis mount for robust thermal management and a 32-PIM (71x37.4) package. Operating across a temperature range of -40°C to 150°C (TJ), it is suitable for industrial motor drives, renewable energy systems, and electric vehicle charging infrastructure. The input capacitance (Cies) is specified at 19.082 nF @ 20 V.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 11 week(s)Product Status: Last Time BuyPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Three Level Inverter |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.7V @ 15V, 80A |
| NTC Thermistor | No |
| Supplier Device Package | 32-PIM (71x37.4) |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 92 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 266 W |
| Current - Collector Cutoff (Max) | 150 µA |
| Input Capacitance (Cies) @ Vce | 19.082 nF @ 20 V |
