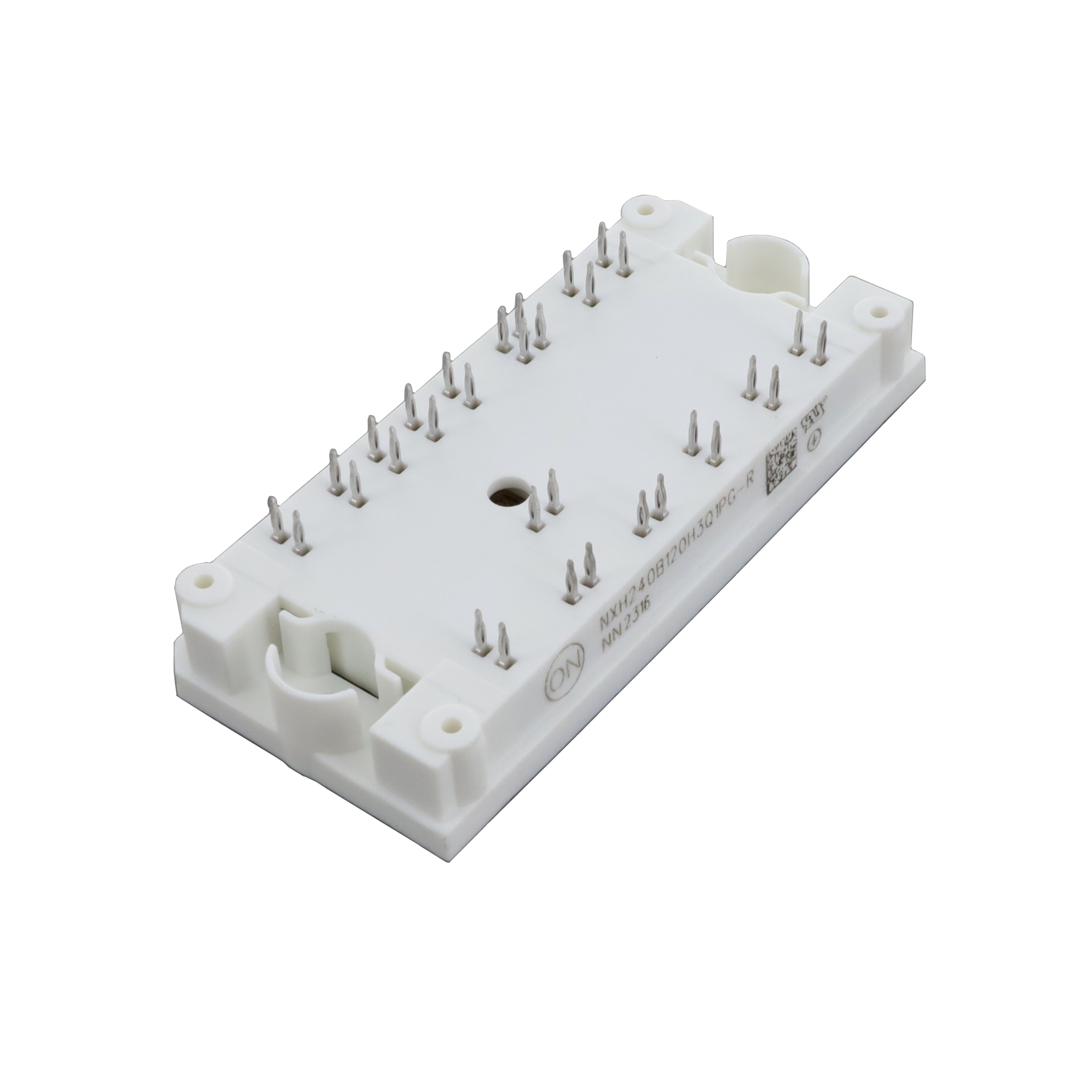

NXH240B120H3Q1PG-R
PIM Q1 3 CHANNEL IGBT+SIC BOOSTManufacturer: onsemi
Categories: IGBT Modules
Quality Control: Learn More
The onsemi NXH240B120H3Q1PG-R is a 1200V, 68A Trench Field Stop IGBT Module designed for three-level inverter configurations. This module features a high power density with a maximum power dissipation of 158W and a low Vce(on) of 2V at 15V Vge and 80A Ic. The internal NTC thermistor provides temperature monitoring, crucial for robust operation. With a collector cutoff current of 400µA and an input capacitance (Cies) of 18.151 nF at 20V, this component is suitable for applications in industrial motor drives, electric vehicle powertrains, and renewable energy systems. It is supplied in a 32-PIM (71x37.4) package for chassis mounting and operates within a temperature range of -40°C to 150°C (TJ).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 11 week(s)Product Status: Last Time BuyPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Three Level Inverter |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 80A |
| NTC Thermistor | Yes |
| Supplier Device Package | 32-PIM (71x37.4) |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 68 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 158 W |
| Current - Collector Cutoff (Max) | 400 µA |
| Input Capacitance (Cies) @ Vce | 18.151 nF @ 20 V |
