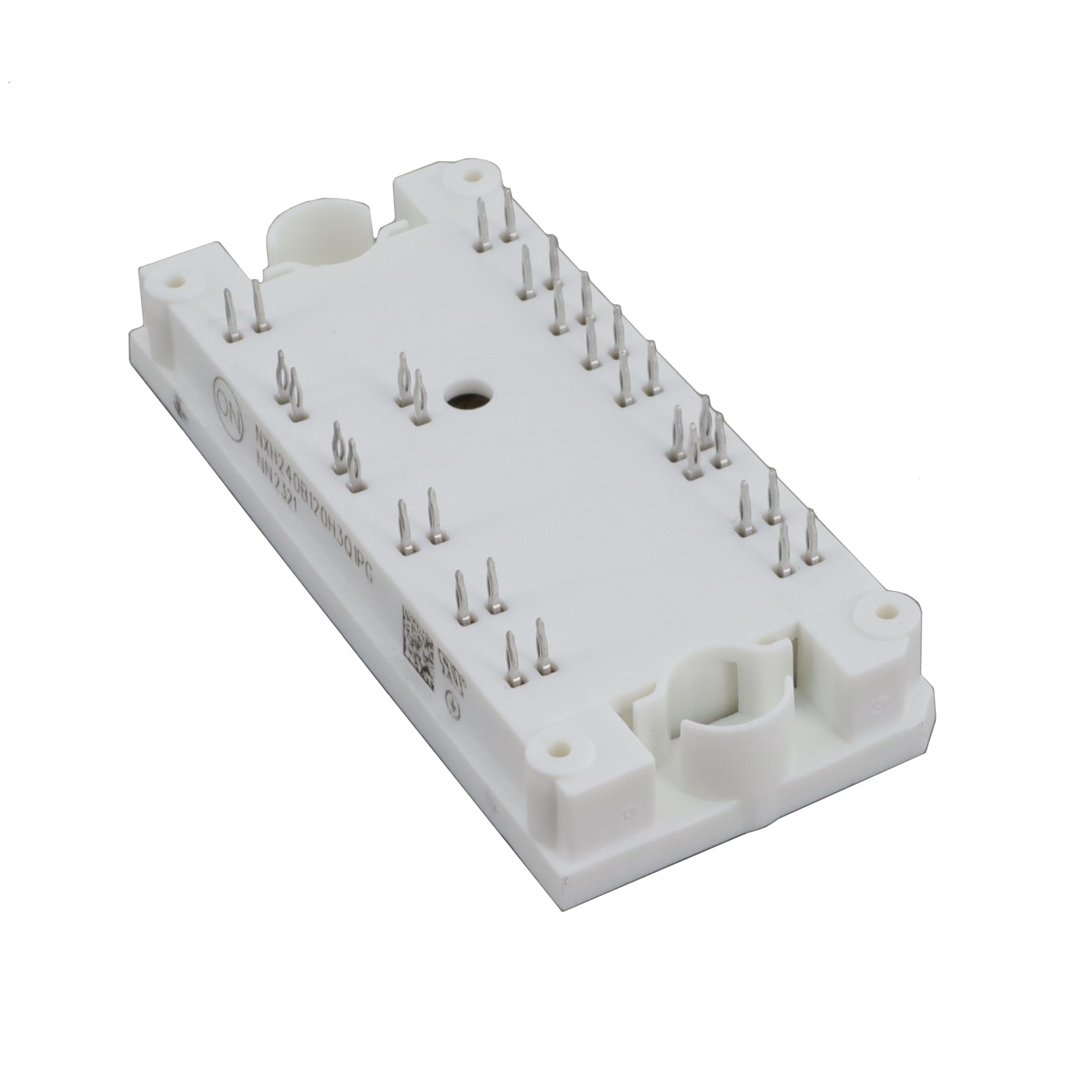

NXH240B120H3Q1PG
PIM Q1 3 CHANNEL IGBT+SIC BOOSTManufacturer: onsemi
Categories: IGBT Modules
Quality Control: Learn More
IGBT Module Trench Field Stop Triple, Dual - Common Source 1200 V 68 A 158 W Chassis Mount 32-PIM (71x37.4)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Triple, Dual - Common Source |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 80A |
| NTC Thermistor | Yes |
| Supplier Device Package | 32-PIM (71x37.4) |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 68 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 158 W |
| Current - Collector Cutoff (Max) | 400 µA |
| Input Capacitance (Cies) @ Vce | 18.151 nF @ 20 V |
Request a Quote
