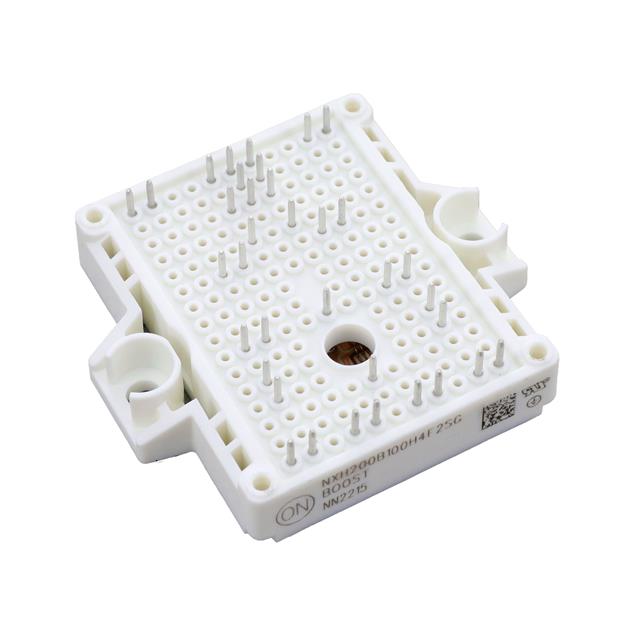

NXH200B100H4F2SG
1500V F2 BOOST FOR SOLAR PIMManufacturer: onsemi
Categories: IGBT Modules
Quality Control: Learn More
IGBT Module Trench Field Stop Three Level Inverter 1000 V 100 A 93 W Chassis Mount 36-PIM (56.7x48)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Three Level Inverter |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 100A |
| NTC Thermistor | Yes |
| Supplier Device Package | 36-PIM (56.7x48) |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 100 A |
| Voltage - Collector Emitter Breakdown (Max) | 1000 V |
| Power - Max | 93 W |
| Current - Collector Cutoff (Max) | 200 µA |
| Input Capacitance (Cies) @ Vce | 6.523 nF @ 20 V |
