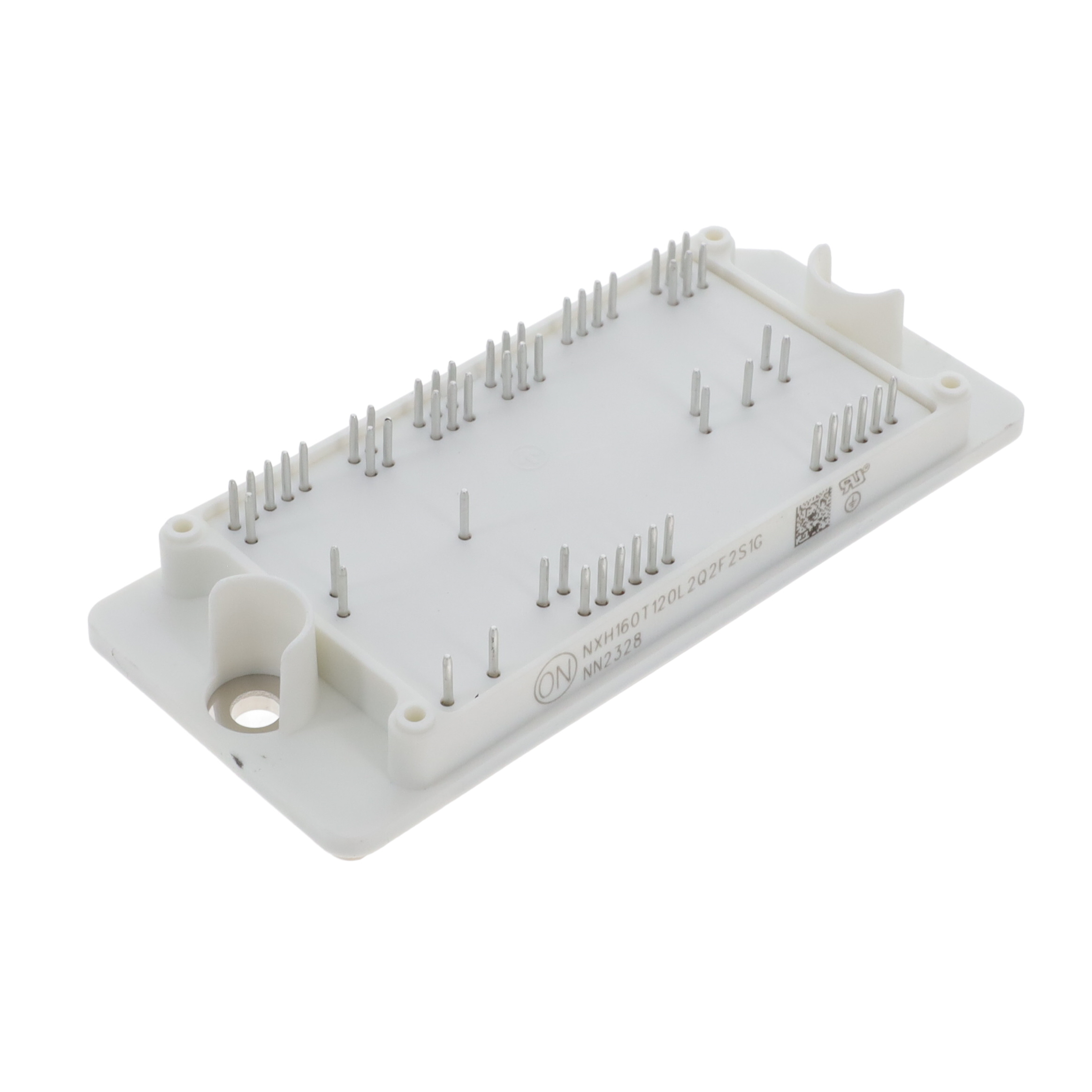

NXH160T120L2Q2F2S1G
PIM POWER MODULEManufacturer: onsemi
Categories: IGBT Modules
Quality Control: Learn More
IGBT Module Three Level Inverter 1200 V 181 A 500 W Chassis Mount 56-PIM/Q2PACK (93x47)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 11 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Three Level Inverter |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.7V @ 15V, 160A |
| NTC Thermistor | Yes |
| Supplier Device Package | 56-PIM/Q2PACK (93x47) |
| IGBT Type | - |
| Current - Collector (Ic) (Max) | 181 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 500 W |
| Current - Collector Cutoff (Max) | 500 µA |
| Input Capacitance (Cies) @ Vce | 38.8 nF @ 25 V |
