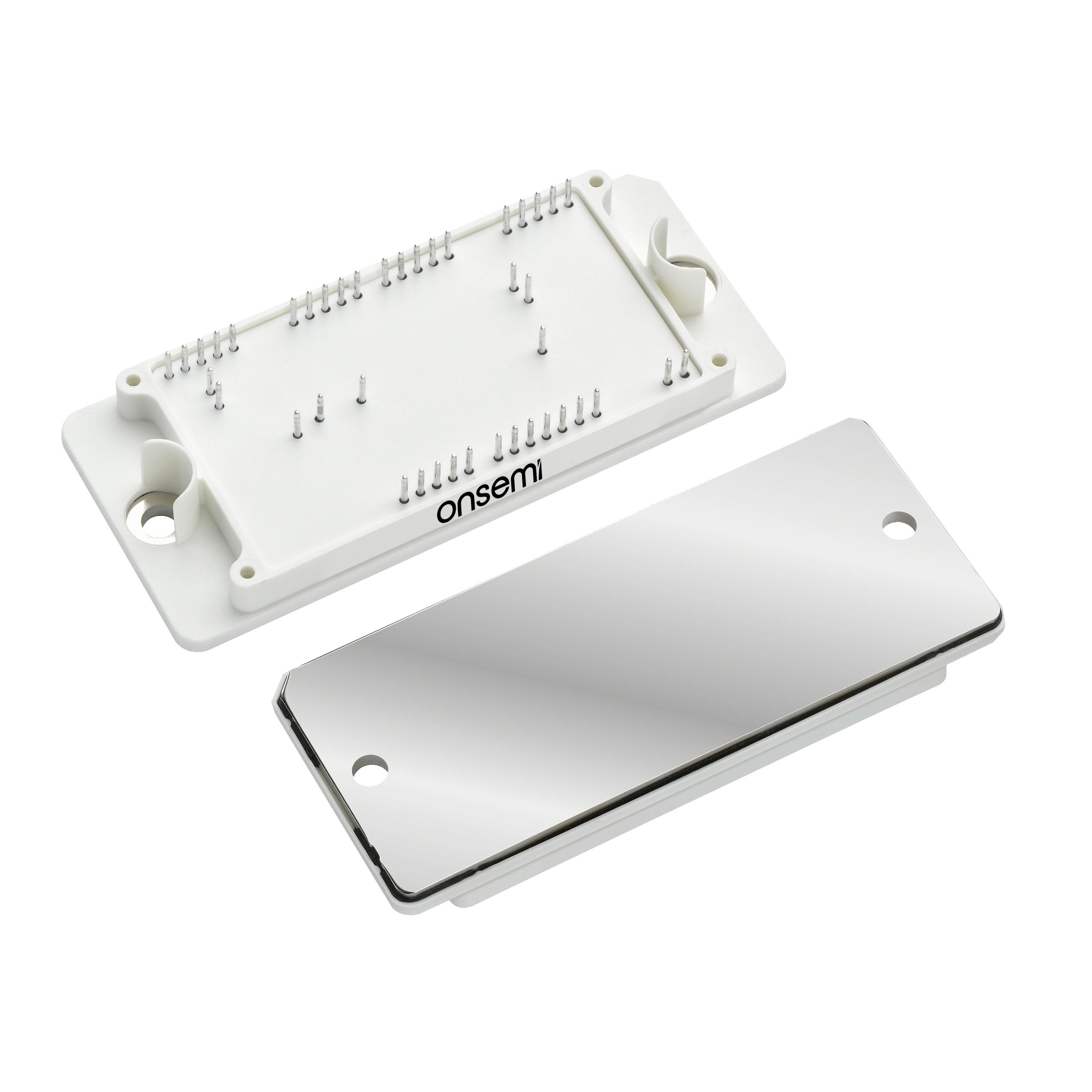

NXH160T120L2Q1SG
PIM Q1 SPLIT T-TYPE NPC 160A 120Manufacturer: onsemi
Categories: IGBT Modules
Quality Control: Learn More
The onsemi NXH160T120L2Q1SG is a Trench Field Stop IGBT Module offering a 1200 V collector-emitter breakdown voltage. This module features a half-bridge configuration and is rated for a continuous collector current of 140 A, with a maximum power dissipation of 280 W. The device exhibits a low on-state voltage, Vce(on), of 2.5 V at 15 V gate-emitter voltage and 160 A collector current. Designed for chassis mounting, it includes an integrated NTC thermistor for thermal monitoring. Its high input capacitance, Cies, is 38164 pF at 25 V. This component is widely utilized in industrial applications requiring robust power switching capabilities.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Half Bridge |
| Operating Temperature | 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 160A |
| NTC Thermistor | Yes |
| Supplier Device Package | 30-PIM (71x37.4) |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 140 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 280 W |
| Current - Collector Cutoff (Max) | 800 µA |
| Input Capacitance (Cies) @ Vce | 38164 pF @ 25 V |
Request a Quote
