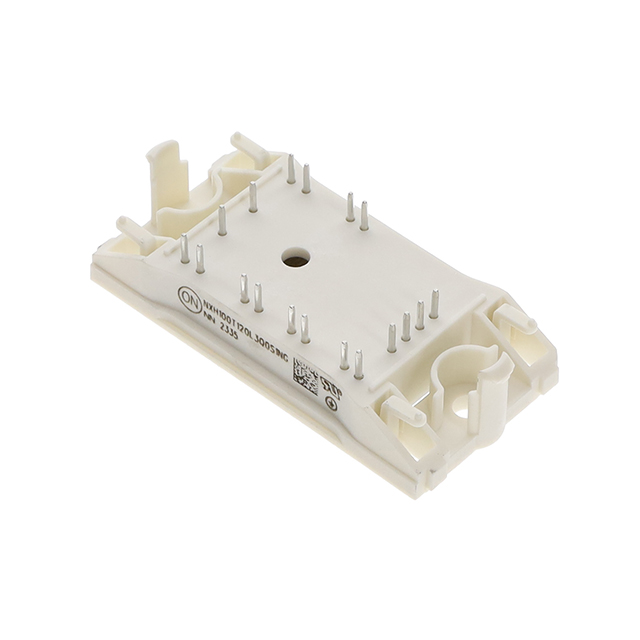

NXH100T120L3Q0S1NG
1200V GEN III Q0PACK WITH NI-PLAManufacturer: onsemi
Categories: IGBT Modules
Quality Control: Learn More
IGBT Module Three Level Inverter 650 V 54 A 122 W Chassis Mount 18-PIM/Q0PACK (55x32.5)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 11 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Three Level Inverter |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.2V @ 15V, 75A |
| NTC Thermistor | Yes |
| Supplier Device Package | 18-PIM/Q0PACK (55x32.5) |
| IGBT Type | - |
| Current - Collector (Ic) (Max) | 54 A |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Power - Max | 122 W |
| Current - Collector Cutoff (Max) | 200 µA |
| Input Capacitance (Cies) @ Vce | 4877 pF @ 25 V |
