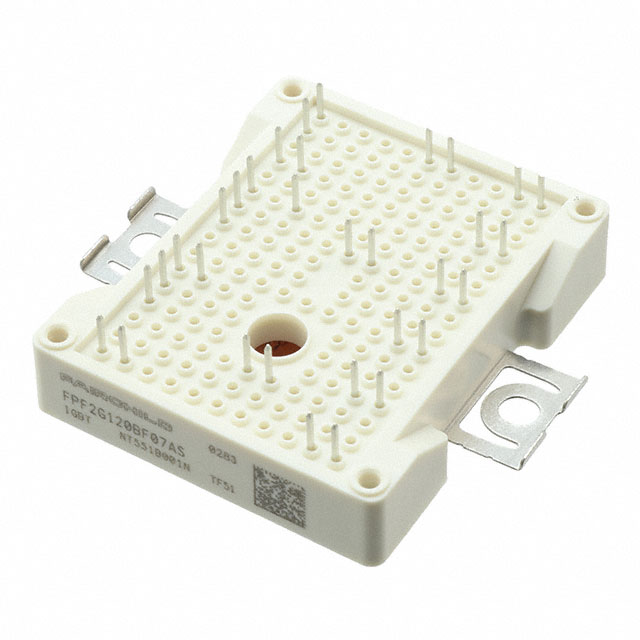

FPF2G120BF07AS
IGBT MODULE 650V 40A 156W F2Manufacturer: onsemi
Categories: IGBT Modules
Quality Control: Learn More
IGBT Module Field Stop 3 Independent 650 V 40 A 156 W Through Hole F2
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Through Hole |
| Input | Standard |
| Configuration | 3 Independent |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.2V @ 15V, 40A |
| NTC Thermistor | Yes |
| Supplier Device Package | F2 |
| IGBT Type | Field Stop |
| Current - Collector (Ic) (Max) | 40 A |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Power - Max | 156 W |
| Current - Collector Cutoff (Max) | 250 µA |
