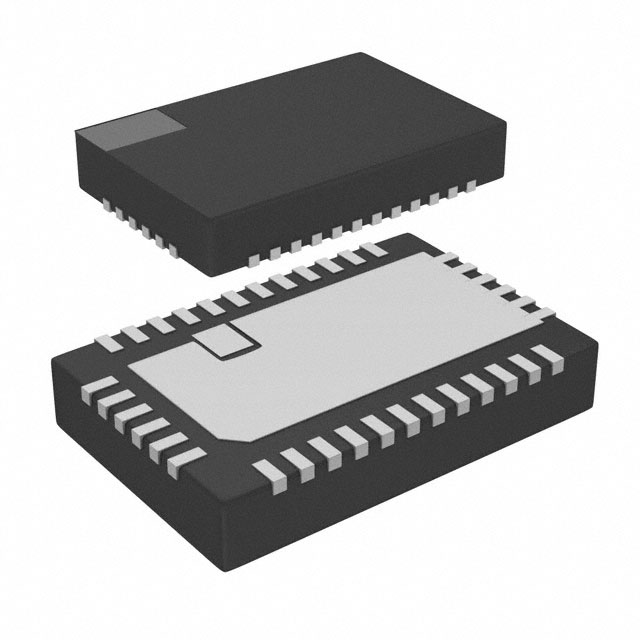

NCP81381MNTXG
IC GATE DRVR HI/LOW SIDE 36QFNManufacturer: onsemi
Categories: Gate Drivers
Quality Control: Learn More
The onsemi NCP81381MNTXG is a high-side or low-side gate driver IC featuring a non-inverting input. This component is designed for driving N-channel MOSFETs with a supply voltage range of 4.5V to 5.5V. The device offers a high-side voltage capability of up to 35V (bootstrap). Packaged in a 36-QFN (6x4) with an exposed pad, the NCP81381MNTXG is suitable for surface mount applications. Its operating temperature range is from -40°C to 150°C (TJ). This driver is utilized in power supply applications, automotive systems, and industrial power control. The NCP81381MNTXG is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-TFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 35 V |
| Supplier Device Package | 36-QFN (6x4) |
| Rise / Fall Time (Typ) | - |
| Channel Type | Synchronous |
| Driven Configuration | High-Side or Low-Side |
| Number of Drivers | 1 |
| Gate Type | N-Channel MOSFET |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | - |
| Programmable | Not Verified |
