NCP81158MNTXG
IC GATE DRVR HALF-BRIDGE 8DFNManufacturer: onsemi
Categories: Gate Drivers
Quality Control: Learn More
The onsemi NCP81158MNTXG is a dual, non-inverting half-bridge gate driver designed for efficient power management applications. This component features a synchronous channel type and is housed in an 8-DFN (3x3) exposed pad package, suitable for surface mount integration. The gate driver supports N-channel and P-channel MOSFETs, with typical rise and fall times of 16ns and 11ns respectively. Operating within a supply voltage range of 4.5V to 5.5V, it offers logic voltage thresholds of 0.6V (VIL) and 3.3V (VIH). The NCP81158MNTXG is engineered for demanding environments, operating from -40°C to 150°C (TJ). This device finds application in various sectors including industrial power supplies and automotive electronics. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 32 week(s)Product Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

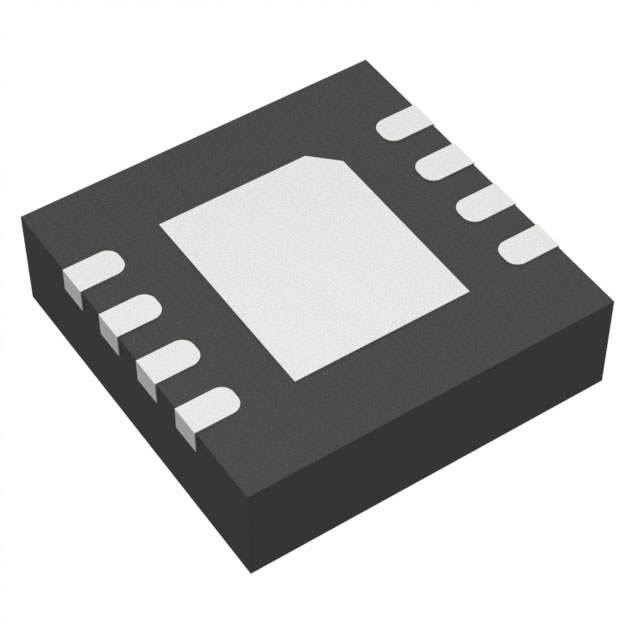

| Package / Case | 8-VFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Input Type | Non-Inverting |
| Supplier Device Package | 8-DFN (3x3) |
| Rise / Fall Time (Typ) | 16ns, 11ns |
| Channel Type | Synchronous |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 2 |
| Gate Type | N-Channel, P-Channel MOSFET |
| Logic Voltage - VIL, VIH | 0.6V, 3.3V |
| Current - Peak Output (Source, Sink) | - |
| Programmable | Not Verified |
