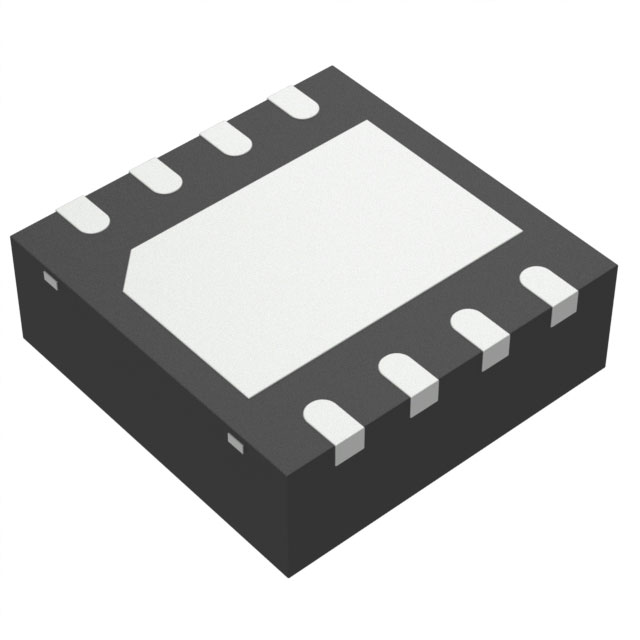

NCP81071AMNTXG
IC GATE DRVR LOW-SIDE 8WDFNManufacturer: onsemi
Categories: Gate Drivers
Quality Control: Learn More
Low-Side Gate Driver IC Inverting 8-WDFN (3x3)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-WDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 140°C (TJ) |
| Voltage - Supply | 4.5V ~ 20V |
| Input Type | Inverting |
| Supplier Device Package | 8-WDFN (3x3) |
| Rise / Fall Time (Typ) | 8ns, 8ns |
| Channel Type | Independent |
| Driven Configuration | Low-Side |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 1.2V, 1.8V |
| Current - Peak Output (Source, Sink) | 5A, 5A |
| Programmable | Not Verified |
