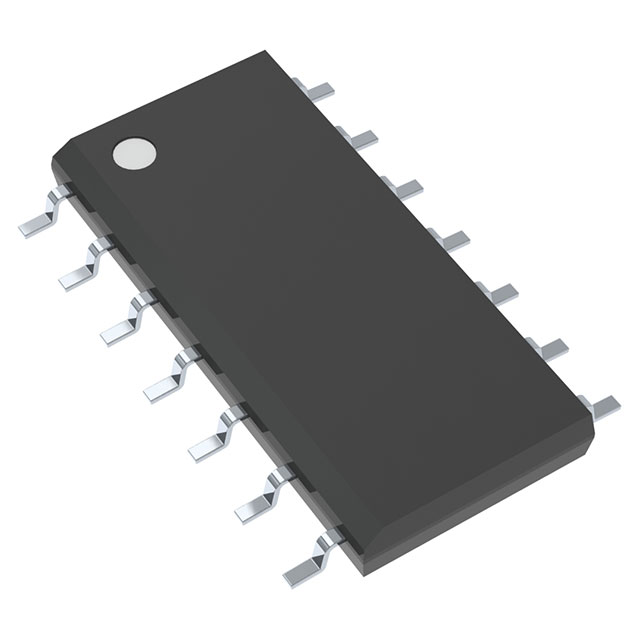

FAN7392MX
IC GATE DRVR HALF-BRIDGE 16SOICManufacturer: onsemi
Categories: Gate Drivers
Quality Control: Learn More
The onsemi FAN7392MX is a high-performance half-bridge gate driver IC, ideal for demanding power applications. This component features two independent non-inverting drivers, each capable of sourcing and sinking 3A peak output current. Designed for driving IGBTs and N-Channel MOSFETs, it supports a high-side bootstrap voltage of up to 600V. The logic voltage requirements range from 4.5V (VIL) to 9.5V (VIH), with typical rise and fall times of 25ns and 20ns respectively.
Operating from a supply voltage of 10V to 20V, the FAN7392MX is housed in a 16-SOIC (0.295", 7.50mm Width) surface-mount package. Its robust design allows for operation across a temperature range of -40°C to 150°C (TJ). This device is extensively utilized in industrial power supplies, motor control, and electric vehicle applications where efficient and reliable switching is critical. The FAN7392MX is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Voltage - Supply | 10V ~ 20V |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 600 V |
| Supplier Device Package | 16-SOIC |
| Rise / Fall Time (Typ) | 25ns, 20ns |
| Channel Type | Independent |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 2 |
| Gate Type | IGBT, N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 4.5V, 9.5V |
| Current - Peak Output (Source, Sink) | 3A, 3A |
| Programmable | Not Verified |
