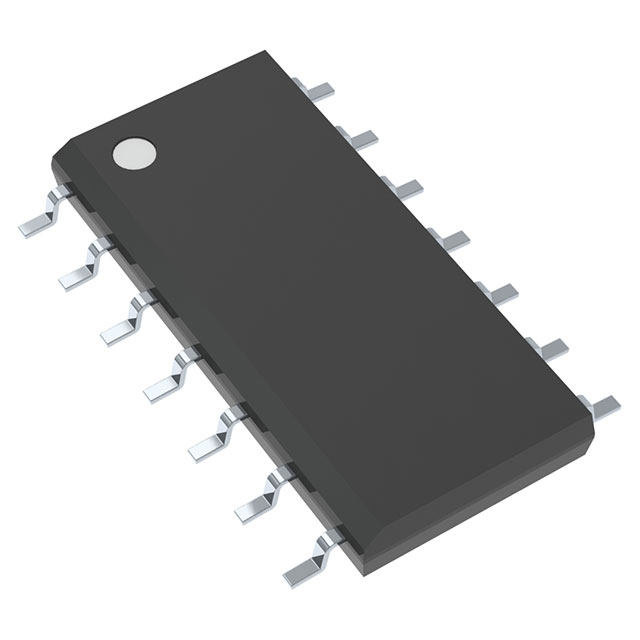

FAN7382M1X
IC GATE DRVR HALF-BRIDGE 14SOPManufacturer: onsemi
Categories: Gate Drivers
Quality Control: Learn More
Half-Bridge Gate Driver IC Non-Inverting 14-SOP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 36 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Voltage - Supply | 10V ~ 20V |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 600 V |
| Supplier Device Package | 14-SOP |
| Rise / Fall Time (Typ) | 60ns, 30ns |
| Channel Type | Independent |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 2 |
| Gate Type | IGBT, N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 0.8V, 2.5V |
| Current - Peak Output (Source, Sink) | 350mA, 650mA |
| Programmable | Not Verified |
