TND321VD-TL-H

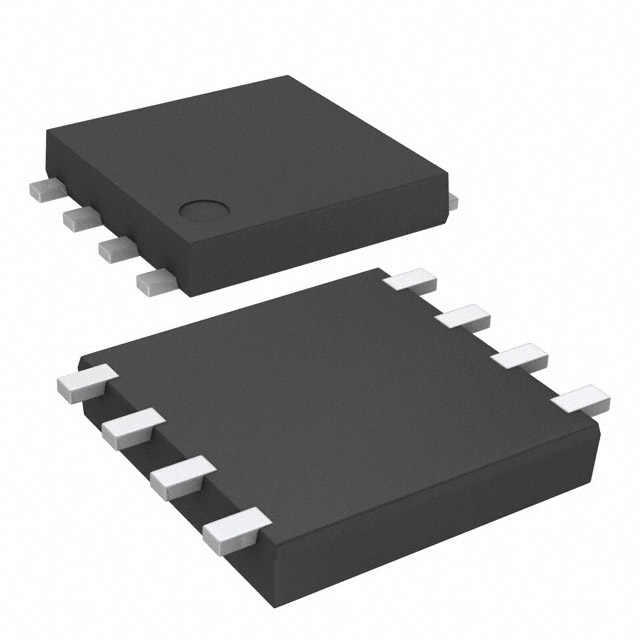

IC HALF BRIDGE DRIVER SOT28FLManufacturer: onsemi
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
The onsemi TND321VD-TL-H is a general-purpose half-bridge driver designed for power MOSFETs. This electronic component, housed in an 8-SMD, Flat Leads SOT-28FL/VEC8 package, operates across a voltage range of 4.5V to 25V for both supply and load. It features peak output currents of 800mA and 1A, with typical on-resistance values of 6 Ohms for the low-side switch and 11 Ohms for the high-side switch. The device utilizes logic-level interface and is suitable for inductive load types. Operating within an industrial temperature range of -55°C to 150°C (TJ), the TND321VD-TL-H is commonly employed in general-purpose power control applications. This component is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SMD, Flat Leads |
| Mounting Type | Surface Mount |
| Interface | Logic |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge (2) |
| Voltage - Supply | 4.5V ~ 25V |
| Rds On (Typ) | 6Ohm LS, 11Ohm HS |
| Applications | General Purpose |
| Current - Output / Channel | - |
| Current - Peak Output | 800mA, 1A |
| Technology | Power MOSFET |
| Voltage - Load | 4.5V ~ 25V |
| Supplier Device Package | SOT-28FL/VEC8 |
| Fault Protection | - |
| Load Type | Inductive |
