STK681-210-E

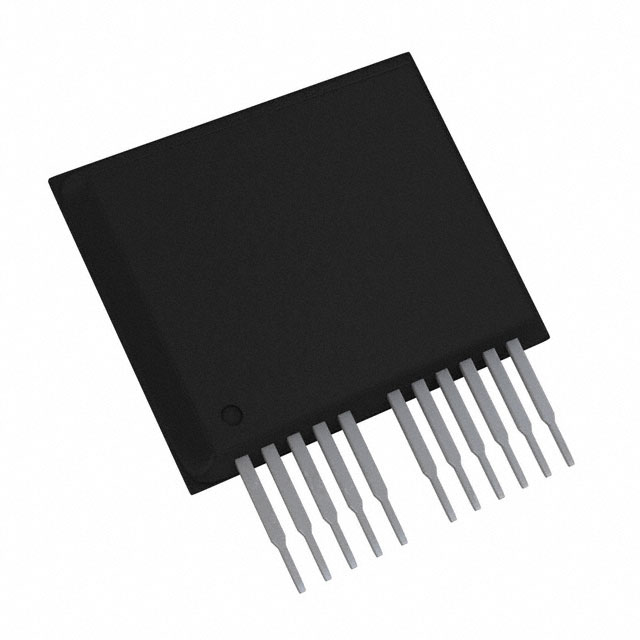

IC HALF BRIDGE DRIVER 5.2A 12SIPManufacturer: onsemi
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
The onsemi STK681-210-E is a Half Bridge driver designed for DC motor control and general-purpose applications. This 12-SIP component, featuring 11 leads, utilizes Power MOSFET technology to deliver robust performance. It provides an output current of 5.2A per channel, with a peak output current capability of 8A, suitable for driving inductive loads. The device operates with a supply voltage range of 4.75V to 5.25V and a load voltage range of 10V to 42V. The interface is logic-level compatible. This driver is commonly found in automotive and industrial automation sectors requiring efficient power stage control. The operating temperature range extends up to 150°C (TJ).
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 12-SIP, 11 Leads |
| Mounting Type | Through Hole |
| Interface | Logic |
| Operating Temperature | 150°C (TJ) |
| Output Configuration | Half Bridge (2) |
| Voltage - Supply | 4.75V ~ 5.25V |
| Rds On (Typ) | - |
| Applications | DC Motors, General Purpose |
| Current - Output / Channel | 5.2A |
| Current - Peak Output | 8A |
| Technology | Power MOSFET |
| Voltage - Load | 10V ~ 42V |
| Supplier Device Package | 12-SIP |
| Fault Protection | - |
| Load Type | Inductive |
