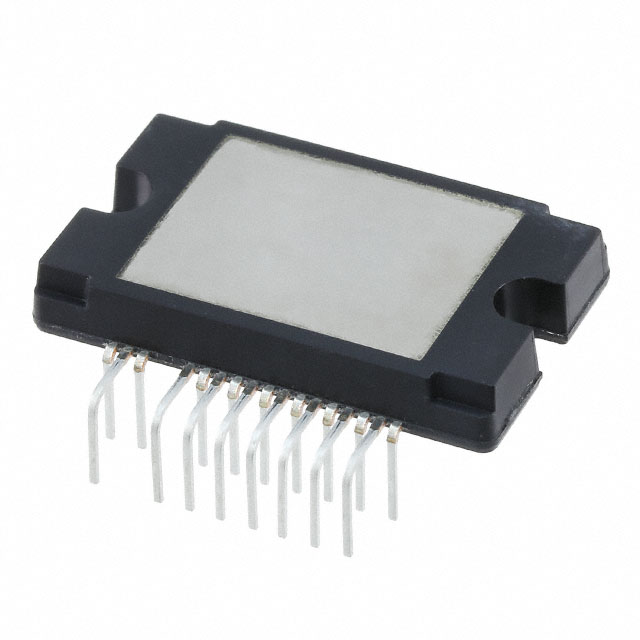

STK5Q4U352J-E
IC HALF BRIDGE DRIVER 8A MODULEManufacturer: onsemi
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
The onsemi STK5Q4U352J-E is a robust Half Bridge driver module designed for high-power applications. This component leverages IGBT technology to deliver efficient power switching, making it suitable for controlling AC motors in industrial automation, electric vehicle powertrains, and power supply systems. It offers a continuous output current of 8A and a peak output of 16A, with fault protection features including current limiting and undervoltage lockout (UVLO) to ensure system reliability.
The STK5Q4U352J-E features a logic-level interface for straightforward integration into existing designs. Its output configuration is a Half Bridge (3), capable of handling load voltages up to 400V (Max). The module operates with a supply voltage range of 12.5V to 17.5V and maintains functionality at junction temperatures up to 150°C. This through-hole mounted module, packaged in a tube, is engineered for demanding environments where reliable motor control is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | Status Flag |
| Packaging | Tube |
| Package / Case | Module |
| Mounting Type | Through Hole |
| Interface | Logic |
| Operating Temperature | 150°C (TJ) |
| Output Configuration | Half Bridge (3) |
| Voltage - Supply | 12.5V ~ 17.5V |
| Rds On (Typ) | - |
| Applications | AC Motors |
| Current - Output / Channel | 8A |
| Current - Peak Output | 16A |
| Technology | IGBT |
| Voltage - Load | 400V (Max) |
| Supplier Device Package | Module |
| Fault Protection | Current Limiting, UVLO |
| Load Type | Inductive |
