STK5F1U3E3D-E

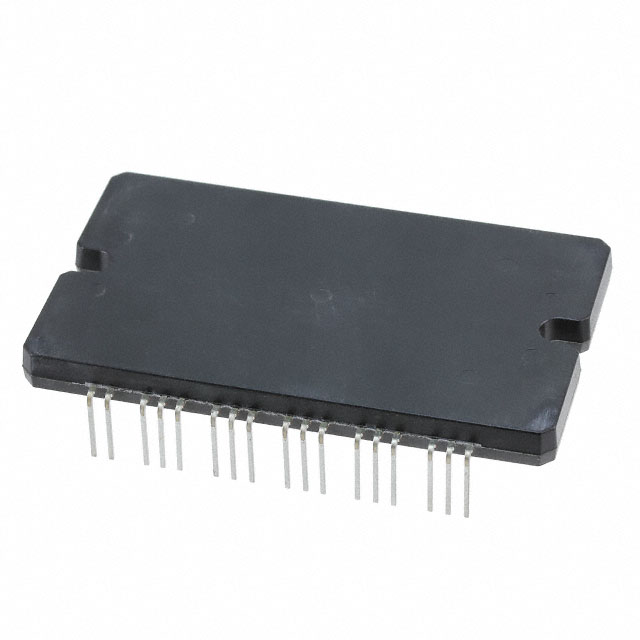

IC HALF BRIDGE DRIVER 50A 44DIPManufacturer: onsemi
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
The onsemi STK5F1U3H3E3D-E is a Half-Bridge driver designed for AC motor control applications. This IGBT-based component delivers a continuous output current of 50A per channel, with a peak output capability of 76A. It features a bootstrap circuit for high-side gate drive and includes fault protection mechanisms such as current limiting and Under-Voltage Lockout (UVLO). The device provides status flags for monitoring operational conditions. Designed for through-hole mounting, it comes in a 44-DIP module package with 37 leads. The operating temperature range is -40°C to 150°C (TJ). This driver is suitable for applications requiring robust power switching and control of inductive loads, commonly found in industrial automation and power electronics.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | Bootstrap Circuit, Status Flag |
| Packaging | Tube |
| Package / Case | 44-DIP Module, 37 Leads |
| Mounting Type | Through Hole |
| Interface | Logic |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge (3) |
| Voltage - Supply | 12.5V ~ 17.5V |
| Rds On (Typ) | - |
| Applications | AC Motors |
| Current - Output / Channel | 50A |
| Current - Peak Output | 76A |
| Technology | IGBT |
| Voltage - Load | 450V (Max) |
| Supplier Device Package | 44-DIP |
| Fault Protection | Current Limiting, UVLO |
| Load Type | Inductive |
