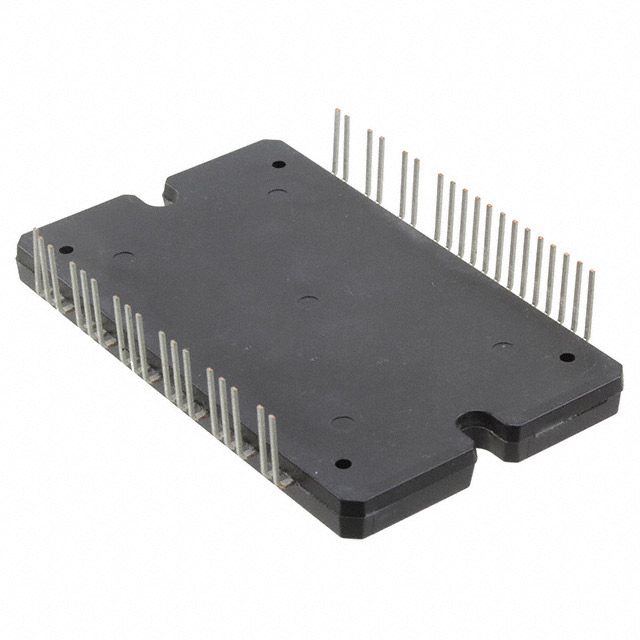

STK5F1U3C2D-E
IC HALF BRIDGE DRIVER 30A 44DIPManufacturer: onsemi
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
The onsemi STK5F1U3C2D-E is a Half Bridge driver designed for AC motor control applications. This component features a 44-DIP Module, 37 Leads package for through-hole mounting. It delivers a continuous output current of 30A per channel, with a peak output current capability of 49A. The driver is built on IGBT technology and supports load voltages up to 450V (Max). Operating from a supply voltage range of 12.5V to 17.5V, the STK5F1U3C2D-E includes fault protection features such as current limiting and UVLO, along with a status flag for monitoring. Its output configuration is Half Bridge. This device is commonly utilized in industrial automation and high-power motor drive systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Status Flag |
| Packaging | Bulk |
| Package / Case | 44-DIP Module, 37 Leads |
| Mounting Type | Through Hole |
| Interface | Logic |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge (3) |
| Voltage - Supply | 12.5V ~ 17.5V |
| Rds On (Typ) | - |
| Applications | AC Motors |
| Current - Output / Channel | 30A |
| Current - Peak Output | 49A |
| Technology | IGBT |
| Voltage - Load | 450V (Max) |
| Supplier Device Package | 44-DIP |
| Fault Protection | Current Limiting, UVLO |
| Load Type | Inductive |
