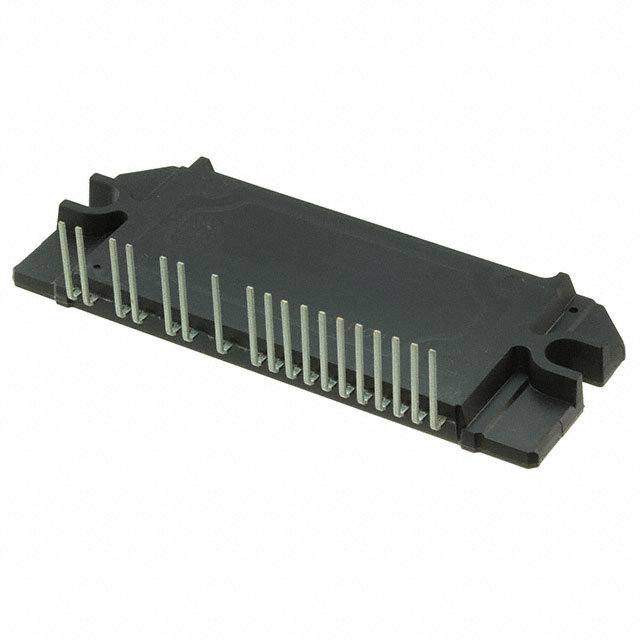

STK581U3C2D-E
IC HALF BRIDGE DRIVER 30A 22SIPManufacturer: onsemi
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
The onsemi STK581U3C2D-E is a 30A half-bridge driver designed for AC motor control applications. This electronic component utilizes IGBT technology and is housed in a 22-SIP package with 18 leads. It features a bootstrap circuit for high-side gate drive and provides fault protection including current limiting and undervoltage lockout (UVLO). The STK581U3C2D-E supports inductive load types and operates with a supply voltage range of 12.5V to 17.5V, driving loads up to 450V. Key specifications include an output current of 30A per channel and a peak output current of 45A. Its through-hole mounting and 22-SIP package with formed leads facilitate robust integration into power systems. This driver is commonly employed in industrial automation and electric vehicle powertrains.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | Bootstrap Circuit, Status Flag |
| Packaging | Tube |
| Package / Case | 22-SIP, 18 Leads, Formed Leads |
| Mounting Type | Through Hole |
| Interface | Logic |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge (3) |
| Voltage - Supply | 12.5V ~ 17.5V |
| Rds On (Typ) | - |
| Applications | AC Motors |
| Current - Output / Channel | 30A |
| Current - Peak Output | 45A |
| Technology | IGBT |
| Voltage - Load | 450V (Max) |
| Supplier Device Package | 22-SIP |
| Fault Protection | Current Limiting, UVLO |
| Load Type | Inductive |
