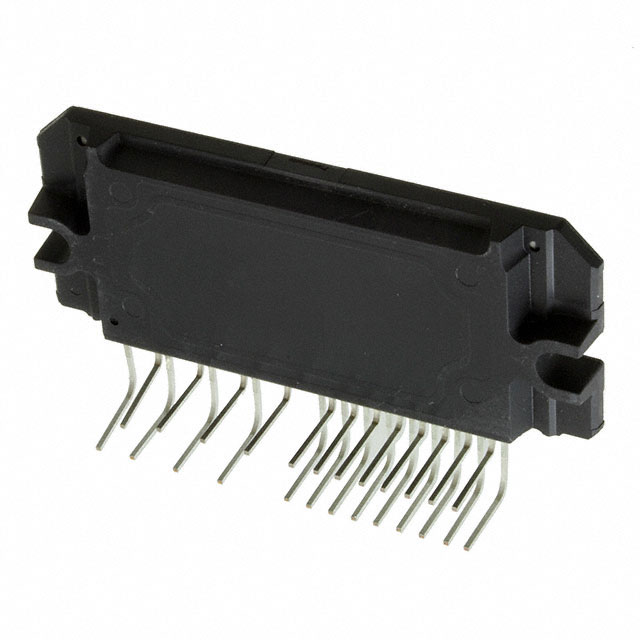

STK57FU394AG-E
IC HALF BRIDGE DRIVER 15A 35SIPManufacturer: onsemi
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
The onsemi STK57FU394AG-E is a Half Bridge Driver designed for AC motors, DC motors, and general-purpose applications utilizing IGBT technology. This component features a 35-SIP/SIP2A-3 package and delivers 15A continuous output current per channel with a peak output of 30A. The device includes integrated fault protection mechanisms such as current limiting and Under-Voltage Lockout (UVLO), along with a bootstrap circuit for efficient high-side gate drive. It interfaces via logic signals and is configured for half-bridge operation, supporting inductive load types. The STK57FU394AG-E operates with a load voltage up to 400V (Max) and a supply voltage range of 12.5V to 17.5V. The operating temperature can reach up to 150°C (TJ). This component is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Bootstrap Circuit |
| Packaging | Tape & Reel (TR) |
| Package / Case | 35-SSIP, 25 Leads |
| Mounting Type | Through Hole |
| Interface | Logic |
| Operating Temperature | 150°C (TJ) |
| Output Configuration | Half Bridge (3) |
| Voltage - Supply | 12.5V ~ 17.5V |
| Rds On (Typ) | - |
| Applications | AC Motors, DC Motors, General Purpose |
| Current - Output / Channel | 15A |
| Current - Peak Output | 30A |
| Technology | IGBT |
| Voltage - Load | 400V (Max) |
| Supplier Device Package | 35-SIP/SIP2A-3 |
| Fault Protection | Current Limiting, UVLO |
| Load Type | Inductive |
