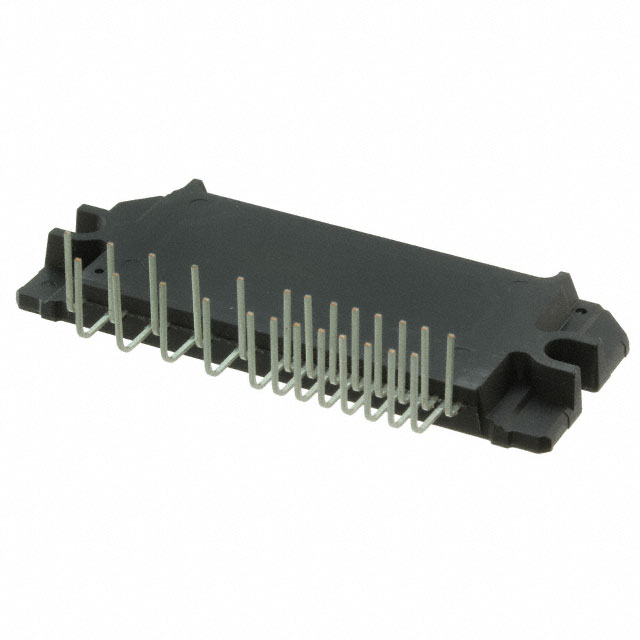

STK57FU394A-E
IC HALF BRIDGE DRIVER 15A 35SIPManufacturer: onsemi
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
onsemi STK57FU394A-E is a half-bridge driver designed for AC motor control applications. This 35-SIP component, featuring bipolar technology, delivers 15A continuous output current per channel with a peak output of 30A. It operates with a supply voltage range of 12.5V to 17V and supports a load voltage of up to 400V. The STK57FU394A-E is suitable for inductive load types and features a through-hole mounting configuration. Its operating temperature reaches 150°C (TJ). The component is packaged in a 35-SSIP with 25 leads and formed leads. This device finds application in various industries requiring robust AC motor drive solutions.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 35-SSIP, 25 Leads, Formed Leads |
| Mounting Type | Through Hole |
| Interface | - |
| Operating Temperature | 150°C (TJ) |
| Output Configuration | Half Bridge (3) |
| Voltage - Supply | 12.5V ~ 17V |
| Rds On (Typ) | - |
| Applications | AC Motors |
| Current - Output / Channel | 15A |
| Current - Peak Output | 30A |
| Technology | Bipolar |
| Voltage - Load | 400V (Max) |
| Supplier Device Package | 35-SIP |
| Fault Protection | - |
| Load Type | Inductive |
