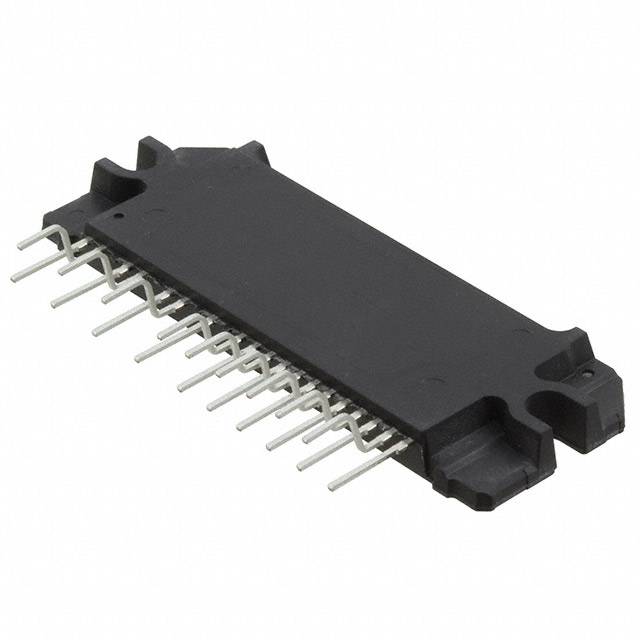

STK544UC62K-E
IC HALF BRIDGE DRIVER 10A 23SIPManufacturer: onsemi
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
onsemi STK544UC62K-E is a Half Bridge driver designed for AC motor control applications. This IGBT-based component delivers a 10A continuous output current per channel with a peak output capability of 20A. Featuring a bootstrap circuit for high-side drive, it offers robust fault protection including shoot-through and undervoltage lockout (UVLO). The STK544UC62K-E supports inductive load types and operates with a supply voltage range of 12.5V to 17.5V, handling a maximum load voltage of 450V. Its output configuration is a Half Bridge, and it interfaces via logic-level inputs. The component is housed in a 23-SIP-1 package with through-hole mounting. This device finds application in industrial automation and power control systems where efficient AC motor driving is critical. Operating temperature ranges from -40°C to 150°C (TJ).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 34 week(s)Product Status: Not For New DesignsPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Bootstrap Circuit |
| Packaging | Tube |
| Package / Case | 23-SIP, 19 Leads, Formed Leads |
| Mounting Type | Through Hole |
| Interface | Logic |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge (3) |
| Voltage - Supply | 12.5V ~ 17.5V |
| Rds On (Typ) | - |
| Applications | AC Motors |
| Current - Output / Channel | 10A |
| Current - Peak Output | 20A |
| Technology | IGBT |
| Voltage - Load | 450V (Max) |
| Supplier Device Package | 23-SIP-1 |
| Fault Protection | Shoot-Through, UVLO |
| Load Type | Inductive |
