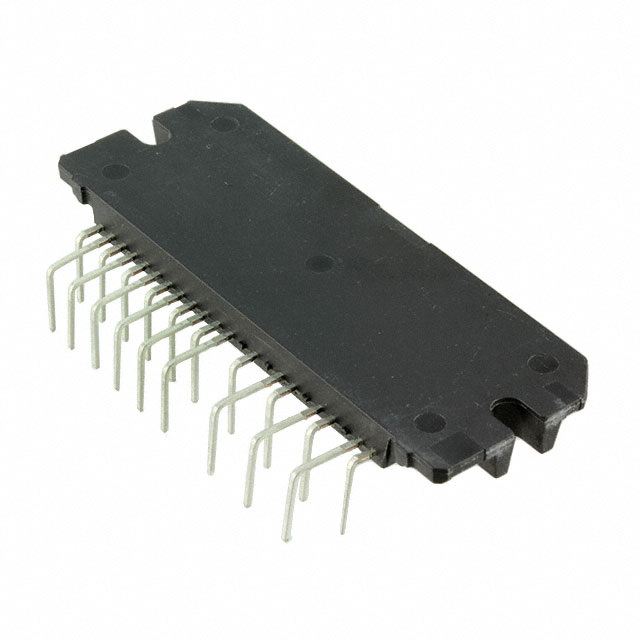

STK541UC60C-E
IC HALF BRIDGE DRIVER 10A 23SIPManufacturer: onsemi
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
onsemi STK541UC60C-E is a high-performance Half Bridge driver designed for robust motor control applications. This component leverages IGBT technology to deliver efficient power switching. It features an output current capability of 10A continuous and 20A peak per channel, suitable for driving AC motors. The device includes integrated fault protection mechanisms such as current limiting and undervoltage lockout (UVLO) for enhanced system reliability. A status flag provides operational feedback. The STK541UC60C-E operates with a supply voltage range of 12.5V to 17.5V and supports a maximum load voltage of 450V. Its output configuration is a Half Bridge, with the load type specified as inductive. The component is housed in a 23-SIP package with formed leads, designed for through-hole mounting. Typical applications include industrial automation and power management systems. The operating temperature range is -40°C to 150°C (TJ).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Status Flag |
| Packaging | Bulk |
| Package / Case | 23-SIP, 19 Leads, Formed Leads |
| Mounting Type | Through Hole |
| Interface | Logic |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge (3) |
| Voltage - Supply | 12.5V ~ 17.5V |
| Rds On (Typ) | - |
| Applications | AC Motors |
| Current - Output / Channel | 10A |
| Current - Peak Output | 20A |
| Technology | IGBT |
| Voltage - Load | 450V (Max) |
| Supplier Device Package | 23-SIP |
| Fault Protection | Current Limiting, UVLO |
| Load Type | Inductive |
