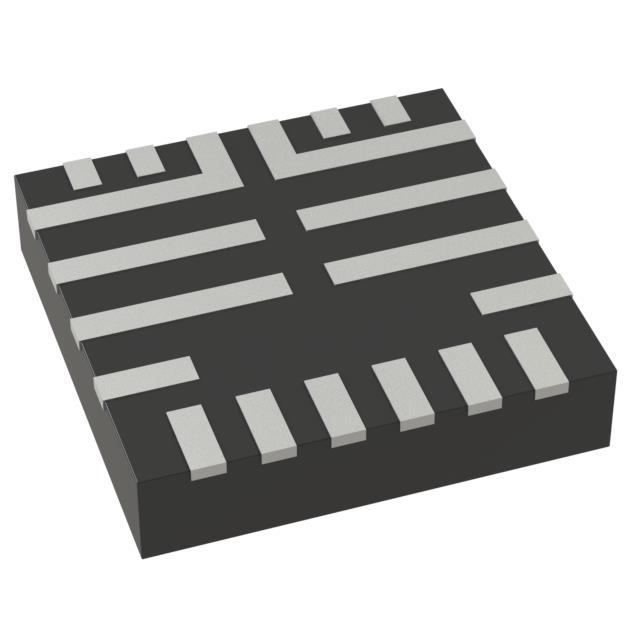

NCV81341PMTWTXG
ADAS DRMOS - P VERSIONManufacturer: onsemi
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
Half Bridge (2) Driver Synchronous Buck Converters DrMOS 20-WQFN (3.5x3.5)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Status Flag |
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-PowerWFQFN |
| Mounting Type | Surface Mount, Wettable Flank |
| Interface | Logic, PWM |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Output Configuration | Half Bridge (2) |
| Voltage - Supply | 4V ~ 5.5V |
| Rds On (Typ) | 10mOhm LS, 16mOhm HS |
| Applications | Synchronous Buck Converters |
| Current - Output / Channel | 5A |
| Current - Peak Output | 10A |
| Technology | DrMOS |
| Voltage - Load | - |
| Supplier Device Package | 20-WQFN (3.5x3.5) |
| Fault Protection | Over Temperature, UVLO |
| Load Type | - |
| Grade | Automotive |
| Qualification | AEC-Q100 |
