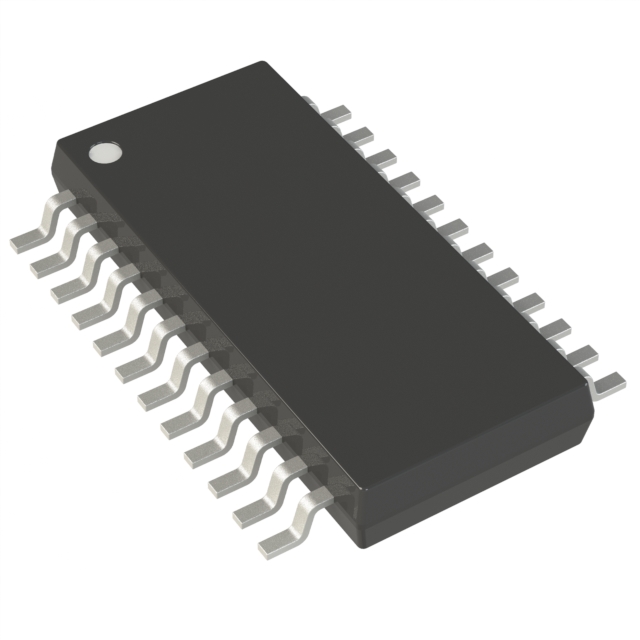

NCV7728DPAR2G
IC HALF BRIDGE DRVR 550MA 24SSOPManufacturer: onsemi
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
The onsemi NCV7728DPAR2G is a versatile Half Bridge Driver designed for efficient DC motor control. This DMOS technology component offers robust performance with a load voltage range of 5.5V to 28V and a supply voltage range of 3.15V to 5.25V. Each half-bridge output is capable of delivering 550mA current, with a peak output current also specified at 550mA. Integrated fault protection includes current limiting, over-temperature, over-voltage, and UVLO (Under-Voltage Lockout) for enhanced reliability in demanding applications. The driver features an SPI interface for communication and is housed in a 24-SSOP package, suitable for surface mounting. Its typical on-resistance (Rds On) is 1 Ohm for both low-side and high-side switches. Applications span DC motor control and general-purpose driving, found in automotive and industrial sectors. The NCV7728DPAR2G is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 31 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-SSOP (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Interface | SPI |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Half Bridge (6) |
| Voltage - Supply | 3.15V ~ 5.25V |
| Rds On (Typ) | 1Ohm LS + HS |
| Applications | DC Motors, General Purpose |
| Current - Output / Channel | 550mA |
| Current - Peak Output | 550mA |
| Technology | DMOS |
| Voltage - Load | 5.5V ~ 28V |
| Supplier Device Package | 24-SSOP |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage, UVLO |
| Load Type | Capacitive |
