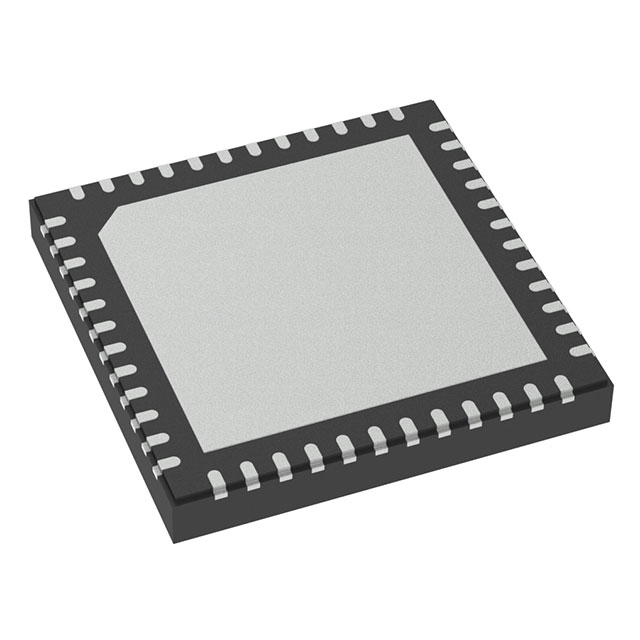

NCV7547MWTXG
IC HALF BRIDGE DRIVER 48QFNWManufacturer: onsemi
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
Half Bridge (7) Driver General Purpose NMOS 48-QFNW (7x7)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 23 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Charge Pump |
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-VFQFN Exposed Pad |
| Mounting Type | Surface Mount, Wettable Flank |
| Interface | PWM, SPI |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge (7) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Rds On (Typ) | - |
| Applications | General Purpose |
| Current - Output / Channel | - |
| Current - Peak Output | - |
| Technology | NMOS |
| Voltage - Load | 7V ~ 18V |
| Supplier Device Package | 48-QFNW (7x7) |
| Fault Protection | Over Load |
| Load Type | Capacitive and Resistive |
| Grade | Automotive |
| Qualification | AEC-Q100 |
