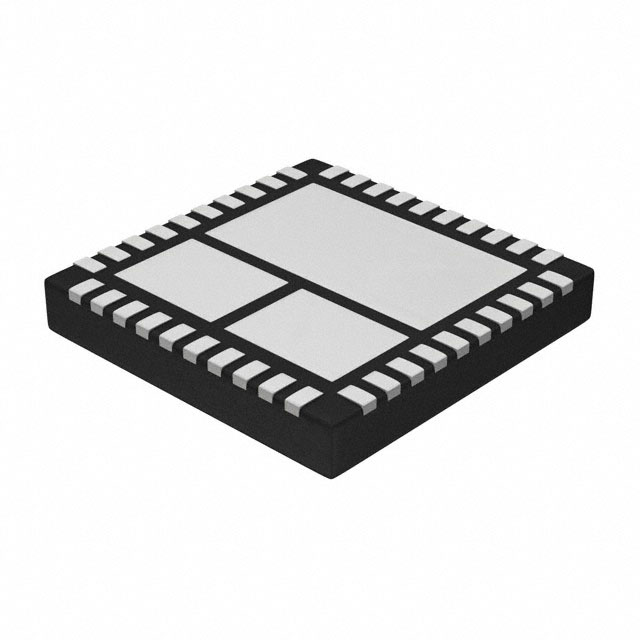

NCP5338MNR2G
IC HALF BRIDGE DRIVER 40A 40QFNManufacturer: onsemi
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
The onsemi NCP5338MNR2G is a high-performance half-bridge driver designed for demanding power conversion applications, particularly buck converters. This component features a robust 40A output capability per channel, enabling efficient control of power MOSFETs in high-current designs. The integrated bootstrap circuit simplifies driver implementation by facilitating the generation of gate drive voltages for the high-side MOSFET. Fault protection mechanisms, including over-temperature and undervoltage lockout (UVLO), enhance system reliability. The NCP5338MNR2G is supplied in a 40-QFN (6x6) exposed pad package, suitable for surface mounting and optimized for thermal performance. Its input interface accepts PWM signals, and it is configured for driving inductive loads. This device finds utility in various industrial power supply and motor control applications where efficient half-bridge operation is critical.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Bootstrap Circuit |
| Packaging | Tape & Reel (TR) |
| Package / Case | 40-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Interface | PWM |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge |
| Voltage - Supply | 4.5V ~ 5.5V |
| Rds On (Typ) | - |
| Applications | Buck Converters |
| Current - Output / Channel | 40A |
| Current - Peak Output | - |
| Technology | Power MOSFET |
| Voltage - Load | 4.5V ~ 20V |
| Supplier Device Package | 40-QFN (6x6) |
| Fault Protection | Over Temperature, UVLO |
| Load Type | Inductive |
