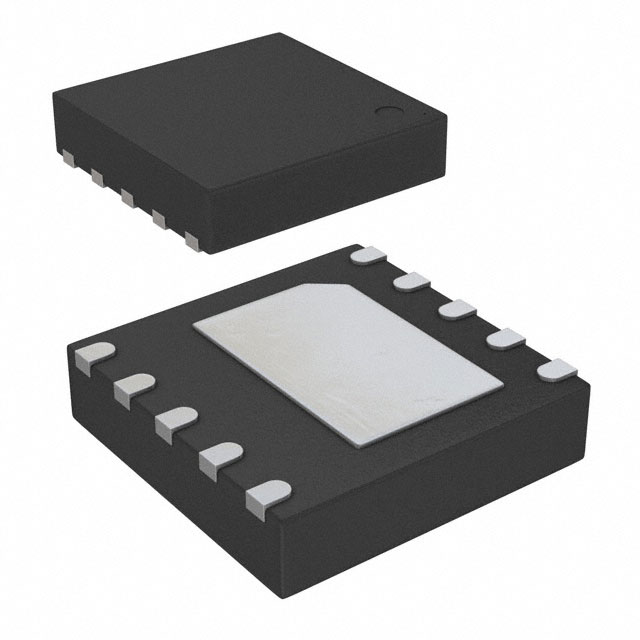

NCP51530AMNTWG
IC HALF BRIDGE DRIVER 2A 10DFNManufacturer: onsemi
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
Half Bridge (2) Driver General Purpose Power MOSFET 10-DFN (4x4)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Bootstrap Circuit |
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-VDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Interface | Logic, PWM |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Half Bridge (2) |
| Voltage - Supply | 10V ~ 17V |
| Rds On (Typ) | - |
| Applications | General Purpose |
| Current - Output / Channel | 2A |
| Current - Peak Output | 3.5A |
| Technology | Power MOSFET |
| Voltage - Load | 700V |
| Supplier Device Package | 10-DFN (4x4) |
| Fault Protection | UVLO |
| Load Type | Inductive, Capacitive |
Request a Quote
