NCP302055MNTWG

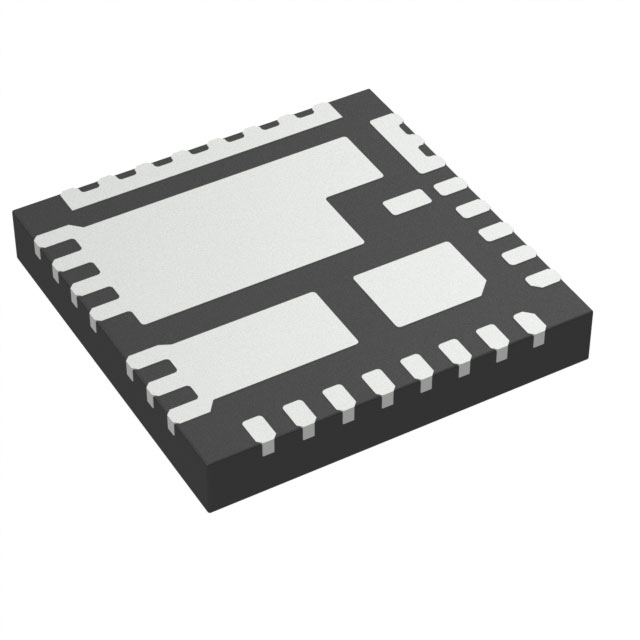

IC GATE DRVR HALF BRD/LOW PQFN31Manufacturer: onsemi
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
The onsemi NCP302055MNTWG is a Half Bridge Driver designed for synchronous buck converters. This electronic component features a 31-PQFN (5x5) package, providing a compact solution for power management applications. It supports a voltage load range of 4.5V to 13.2V and a supply voltage of 4.5V to 5.5V, with an impressive output current capability of 50A per channel. Integrated fault protection mechanisms, including over-temperature and UVLO, ensure robust operation. The NCP302055MNTWG incorporates a bootstrap circuit and accepts Logic and PWM interfaces, making it suitable for driving inductive, capacitive, and resistive loads. This device is commonly utilized in automotive and industrial power supply designs.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Bootstrap Circuit |
| Packaging | Tape & Reel (TR) |
| Package / Case | 31-PowerWFQFN |
| Mounting Type | Surface Mount |
| Interface | Logic, PWM |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | Half Bridge |
| Voltage - Supply | 4.5V ~ 5.5V |
| Rds On (Typ) | - |
| Applications | Synchronous Buck Converters |
| Current - Output / Channel | 50A |
| Current - Peak Output | - |
| Technology | MOSFET (Metal Oxide) |
| Voltage - Load | 4.5V ~ 13.2V |
| Supplier Device Package | 31-PQFN (5x5) |
| Fault Protection | Over Temperature, UVLO |
| Load Type | Inductive, Capacitive, Resistive |
