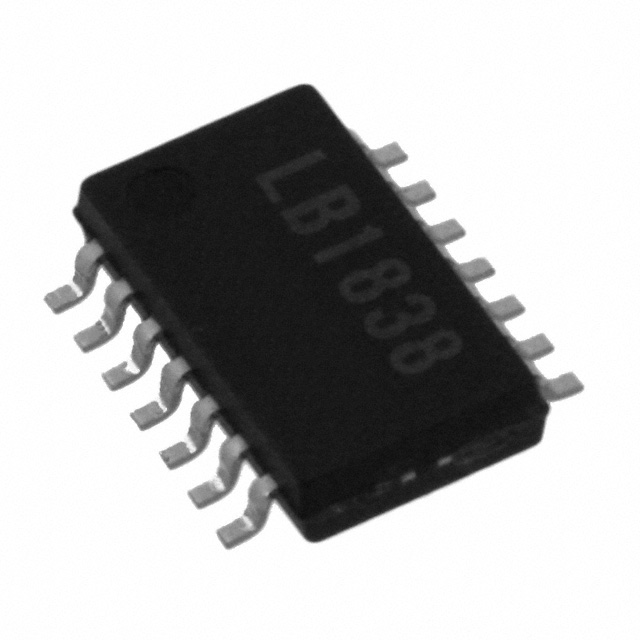

LB1863M-TLM-H
IC HALF BRIDGE DRVR 1.5A 14SOICManufacturer: onsemi
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
The onsemi LB1863M-TLM-H is a bipolar Half Bridge driver designed for DC motor control and general-purpose applications. This component features two output channels, each capable of sourcing up to 1.5A. The driver operates within a supply voltage range of 6.4V to 7V and supports load voltages up to 24V. Integrated over-temperature fault protection enhances operational reliability. The LB1863M-TLM-H utilizes a logic interface for control and is housed in a 14-SOIC/MFPS package, specifically a 14-LSOP (0.173", 4.40mm Width) for surface mounting. This device is commonly employed in automotive and industrial automation sectors for precise motor management. It is supplied in a Tape & Reel (TR) package.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-LSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Interface | Logic |
| Operating Temperature | -30°C ~ 80°C (TA) |
| Output Configuration | Half Bridge (2) |
| Voltage - Supply | 6.4V ~ 7V |
| Rds On (Typ) | - |
| Applications | DC Motors, General Purpose |
| Current - Output / Channel | 1.5A |
| Current - Peak Output | - |
| Technology | Bipolar |
| Voltage - Load | 24V |
| Supplier Device Package | 14-SOIC/MFPS |
| Fault Protection | Over Temperature |
| Load Type | Inductive |
