LA6584M-MPB-H
IC HALF BRIDGE DRVR 1.6A MFP16FSManufacturer: onsemi
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
The onsemi LA6584M-MPB-H is a dedicated half-bridge driver designed for efficient control of DC motors and general-purpose bipolar applications. This component offers a 1.6A output current per channel, suitable for inductive load types. It features a surface mountable 16-MFPFS package (16-LSOP) with heat tabs, ensuring effective thermal management. The operating temperature range is specified from -30°C to 90°C (TA). This driver operates with supply voltages ranging from 2.8V to 14V, accommodating a broad spectrum of power requirements. Its logic interface simplifies integration into various system designs. The LA6584M-MPB-H is commonly found in automotive and industrial applications where precise motor control is critical.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 16-LSOP (0.213"", 5.40mm Width) + 4 Heat Tabs |
| Mounting Type | Surface Mount |
| Interface | Logic |
| Operating Temperature | -30°C ~ 90°C (TA) |
| Output Configuration | Half Bridge (2) |
| Voltage - Supply | 2.8V ~ 14V |
| Rds On (Typ) | - |
| Applications | DC Motors, General Purpose |
| Current - Output / Channel | 1.6A |
| Current - Peak Output | - |
| Technology | Bipolar |
| Voltage - Load | 2.8V ~ 14V |
| Supplier Device Package | 16-MFPFS |
| Fault Protection | - |
| Load Type | Inductive |
Request a Quote
Clients Also Buy
FDMF5804A
IC SPS HALF-BRIDGE DRIVER
CS1107EDFR8
IC DRIVER RELAY SGL 350MA 8SOIC

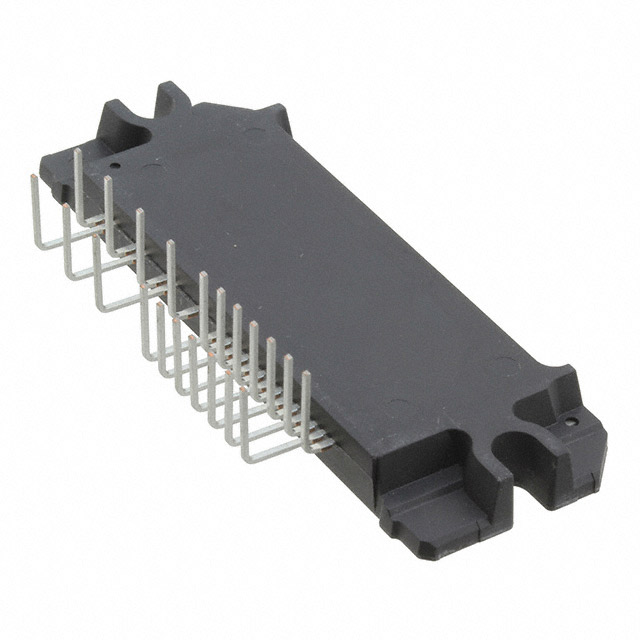

STK534U363C-E
