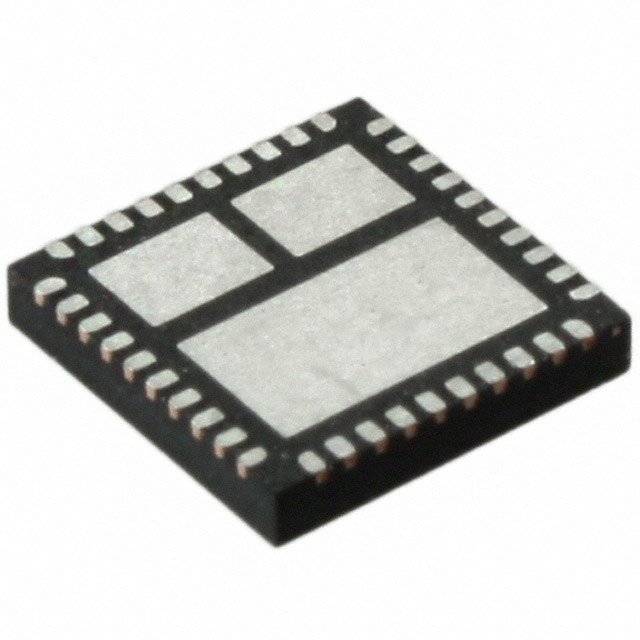

FDMF6823C
IC HALF BRIDGE DRIVER 50A 40PQFNManufacturer: onsemi
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
The onsemi XS™ DrMOS FDMF6823C is a high-performance half-bridge driver designed for advanced synchronous buck converter applications. This DrMOS device integrates a high-side and low-side MOSFET with driver circuitry in a compact 40-PQFN (6x6) package. It supports an output current of 50A and operates within a load voltage range of 3V to 16V, with a supply voltage of 4.5V to 5.5V. Key features include built-in fault protection for over temperature, shoot-through, and undervoltage lockout (UVLO), along with a bootstrap circuit and status flag for enhanced system monitoring. The device offers a PWM interface and is suitable for inductive load types. Its surface mount configuration and operating temperature range of -40°C to 150°C make it a robust solution for demanding power management in computing, server, and industrial systems.
Additional Information
Series: XS™ DrMOSRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Bootstrap Circuit, Status Flag |
| Packaging | Tape & Reel (TR) |
| Package / Case | 40-PowerTFQFN |
| Mounting Type | Surface Mount |
| Interface | PWM |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge |
| Voltage - Supply | 4.5V ~ 5.5V |
| Rds On (Typ) | 1Ohm LS, 1Ohm HS |
| Applications | Synchronous Buck Converters |
| Current - Output / Channel | 50A |
| Current - Peak Output | - |
| Technology | DrMOS |
| Voltage - Load | 3V ~ 16V |
| Supplier Device Package | 40-PQFN (6x6) |
| Fault Protection | Over Temperature, Shoot-Through, UVLO |
| Load Type | Inductive |
