FDMF5820DC

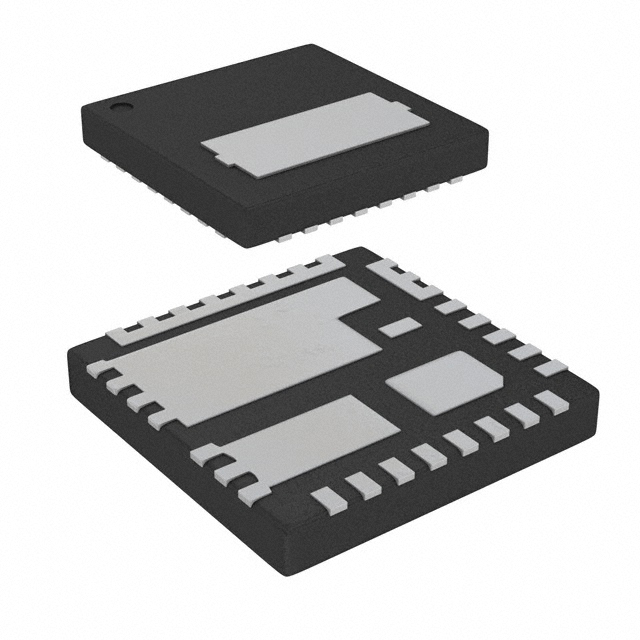

IC HALF BRIDGE DRIVER 60A 31PQFNManufacturer: onsemi
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
onsemi FDMF5820DC, a Half Bridge Driver from the PowerTrench® and SyncFET™ series, is designed for synchronous buck converter applications. This UMOS technology component is packaged in a 31-PQFN (5x5) and supplied on tape and reel. Featuring a bootstrap circuit and latch function for robust operation, it includes fault protection for over-temperature and UVLO conditions. The driver supports PWM interface and is optimized for inductive load types. With an output configuration of Half Bridge, it offers a typical Rds(On) of 470mOhm for the low-side and 680mOhm for the high-side. Operating voltage for the load is between 4.5V and 16V, while the supply voltage ranges from 4.5V to 5.5V. The operating temperature is specified from -40°C to 125°C (TJ). This component is integral to power management solutions across various industries, including computing and industrial automation.
Additional Information
Series: PowerTrench®, SyncFET™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Bootstrap Circuit, Latch Function, Status Flag |
| Packaging | Tape & Reel (TR) |
| Package / Case | 31-PowerWFQFN |
| Mounting Type | Surface Mount |
| Interface | PWM |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Half Bridge |
| Voltage - Supply | 4.5V ~ 5.5V |
| Rds On (Typ) | 470mOhm LS, 680mOhm HS |
| Applications | Synchronous Buck Converters |
| Current - Output / Channel | 60A |
| Current - Peak Output | - |
| Technology | UMOS |
| Voltage - Load | 4.5V ~ 16V |
| Supplier Device Package | 31-PQFN (5x5) |
| Fault Protection | Over Temperature, UVLO |
| Load Type | Inductive |
