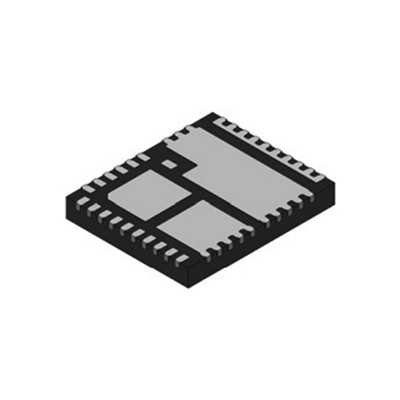

FDMF3180
IC HALF BRIDGE DRIVER 70A 39QFNManufacturer: onsemi
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
The onsemi FDMF3180 is a highly integrated half-bridge driver designed for demanding power applications. This component features a 70A continuous output current capability per channel, making it suitable for driving power MOSFETs in applications requiring high current density. Its robust design includes integrated fault protection mechanisms such as current limiting, over-temperature shutdown, and undervoltage lockout (UVLO) to ensure system reliability. The FDMF3180 offers flexible PWM and logic-level interfacing for seamless integration into various control architectures. It is engineered to drive both inductive and capacitive loads, commonly found in power conversion systems, motor control, and high-power switching applications across industrial and automotive sectors. The device is supplied in a compact 39-PQFN (5x6) package, optimized for surface mounting and thermal performance, delivered on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 39-PowerVFQFN |
| Mounting Type | Surface Mount |
| Interface | Logic, PWM |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | Half Bridge (2) |
| Voltage - Supply | - |
| Rds On (Typ) | - |
| Applications | General Purpose |
| Current - Output / Channel | 70A |
| Current - Peak Output | - |
| Technology | Power MOSFET |
| Voltage - Load | - |
| Supplier Device Package | 39-PQFN (5x6) |
| Fault Protection | Current Limiting, Over Temperature, UVLO |
| Load Type | Inductive, Capacitive |
