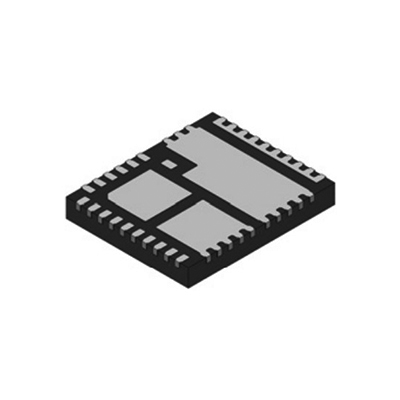

FDMF3170
IC HALF BRIDGE DRIVER 55A 39QFNManufacturer: onsemi
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
The onsemi FDMF3170 is a Half Bridge driver designed for demanding power applications. This component leverages Power MOSFET technology to deliver robust performance. It features a 39-PQFN (5x6) package, suitable for surface mount configurations. The device offers a continuous output current of 55A, with peak output capabilities reaching 70A, making it ideal for driving inductive loads. Integrated fault protection includes current limiting, over-temperature shutdown, and Under-Voltage Lockout (UVLO) for enhanced system reliability. The interface supports standard logic and PWM signals. Operating across a junction temperature range of -40°C to 125°C, the FDMF3170 is engineered for general-purpose use in various industrial and automotive power management systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 39-PowerVFQFN |
| Mounting Type | Surface Mount |
| Interface | Logic, PWM |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Half Bridge (2) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Rds On (Typ) | - |
| Applications | General Purpose |
| Current - Output / Channel | 55A |
| Current - Peak Output | 70A |
| Technology | Power MOSFET |
| Voltage - Load | 4.5V ~ 16V |
| Supplier Device Package | 39-PQFN (5x6) |
| Fault Protection | Current Limiting, Over Temperature, UVLO |
| Load Type | Inductive |
