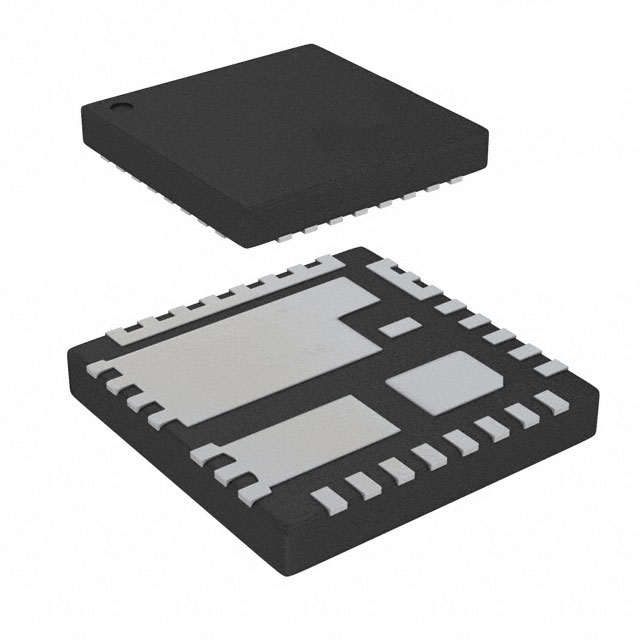

FDMF3035
IC HALF BRIDGE DRIVER 50A 31PQFNManufacturer: onsemi
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
The onsemi FDMF3035 is a half bridge driver designed for synchronous buck converters. Part of the PowerTrench® and SyncFET™ series, this UMOS technology device features a 31-PQFN (5x5) package, supplied on tape and reel. It offers an output current capability of 50A, with peak output also at 50A. Key protection features include shoot-through and UVLO. Integrated bootstrap circuitry and diode emulation enhance its performance. The interface is PWM, and it is suitable for inductive load types. Mounting is surface mount. Operating temperature ranges from -40°C to 150°C (TJ). Load voltage is specified from 4.5V to 24V, with a supply voltage of 4.5V to 5.5V. This component finds application in power supply designs across various industries.
Additional Information
Series: PowerTrench®, SyncFET™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Bootstrap Circuit, Diode Emulation |
| Packaging | Tape & Reel (TR) |
| Package / Case | 31-PowerWFQFN |
| Mounting Type | Surface Mount |
| Interface | PWM |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge |
| Voltage - Supply | 4.5V ~ 5.5V |
| Rds On (Typ) | 1Ohm LS, 1Ohm HS |
| Applications | Synchronous Buck Converters |
| Current - Output / Channel | 50A |
| Current - Peak Output | 50A |
| Technology | UMOS |
| Voltage - Load | 4.5V ~ 24V |
| Supplier Device Package | 31-PQFN (5x5) |
| Fault Protection | Shoot-Through, UVLO |
| Load Type | Inductive |
