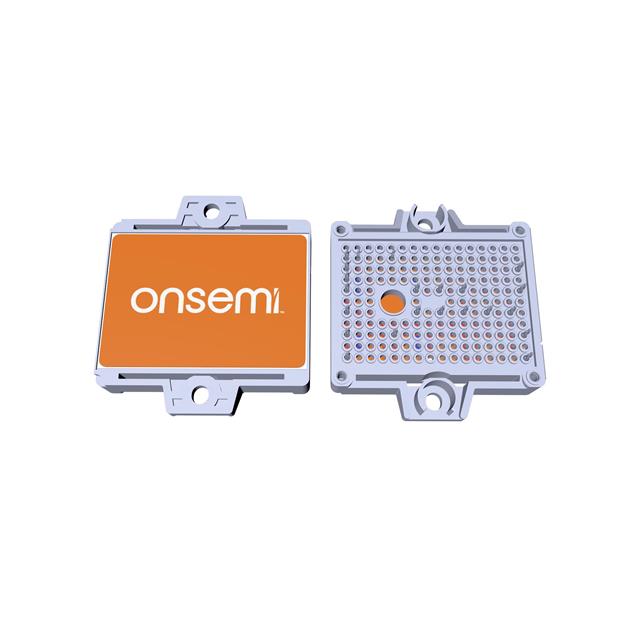

NXH020U90MNF2PTG
SIC 2N-CH 900V 149AManufacturer: onsemi
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 900V 149A (Tc) 352W (Tj) Chassis Mount
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Configuration | 2 N-Channel (Dual) |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Technology | Silicon Carbide (SiC) |
| Power - Max | 352W (Tj) |
| Drain to Source Voltage (Vdss) | 900V |
| Current - Continuous Drain (Id) @ 25°C | 149A (Tc) |
| Input Capacitance (Ciss) (Max) @ Vds | 7007pF @ 450V |
| Rds On (Max) @ Id, Vgs | 14mOhm @ 100A, 15V |
| Gate Charge (Qg) (Max) @ Vgs | 546.4nC @ 15V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 4.3V @ 40mA |
| Supplier Device Package | - |
Request a Quote
