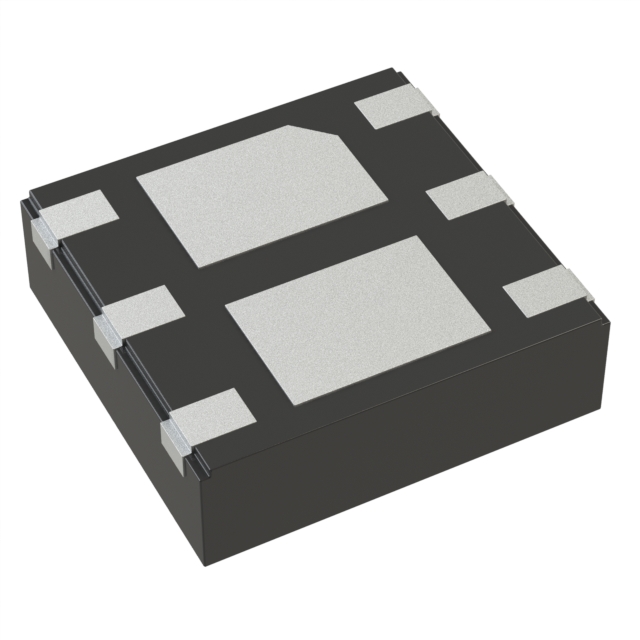

NVLJWD040N06CLTAG
MOSFET 2N-CH 60V 5.5A 6WDFNWManufacturer: onsemi
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 60V 5.5A (Ta), 18A (Tc) 2.2W (Ta), 24W (Tc) Surface Mount, Wettable Flank 6-WDFNW (2.2x2.3)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-WDFN Exposed Pad |
| Mounting Type | Surface Mount, Wettable Flank |
| Configuration | 2 N-Channel (Dual) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 2.2W (Ta), 24W (Tc) |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25°C | 5.5A (Ta), 18A (Tc) |
| Input Capacitance (Ciss) (Max) @ Vds | 340pF @ 25V |
| Rds On (Max) @ Id, Vgs | 38mOhm @ 5A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 6nC @ 10V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 2V @ 13µA |
| Supplier Device Package | 6-WDFNW (2.2x2.3) |
| Grade | Automotive |
| Qualification | AEC-Q101 |
