NTTFD9D0N06HLTWG
MOSFET 2N-CH 60V 9A/38A 12WQFNManufacturer: onsemi
Categories: FET, MOSFET Arrays
Quality Control: Learn More

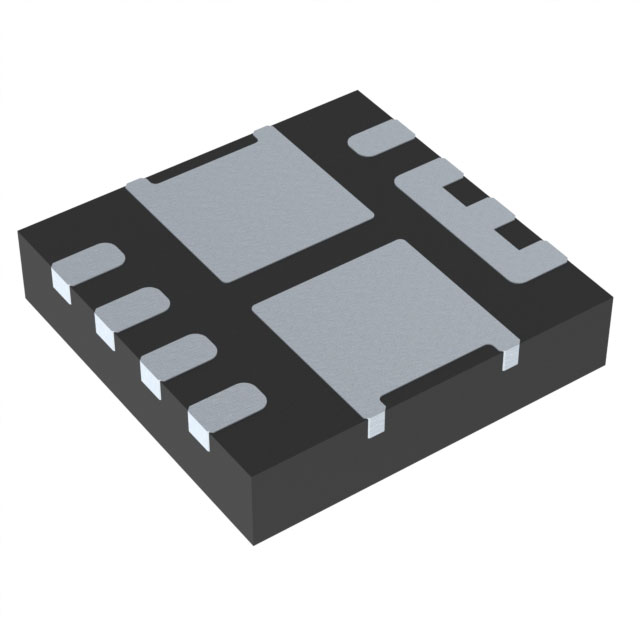

Mosfet Array 60V 9A (Ta), 38A (Tc) 1.7W (Ta), 26W (Tc) Surface Mount 12-WQFN (3.3x3.3)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 21 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-PowerWQFN |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 1.7W (Ta), 26W (Tc) |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25°C | 9A (Ta), 38A (Tc) |
| Input Capacitance (Ciss) (Max) @ Vds | 948pF @ 30V |
| Rds On (Max) @ Id, Vgs | 9mOhm @ 10A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 13.5nC @ 10V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 2V @ 50µA |
| Supplier Device Package | 12-WQFN (3.3x3.3) |
