NTND31225CZTAG
MOSFET N/P-CH 20V 0.22A 6XLLGAManufacturer: onsemi
Categories: FET, MOSFET Arrays
Quality Control: Learn More

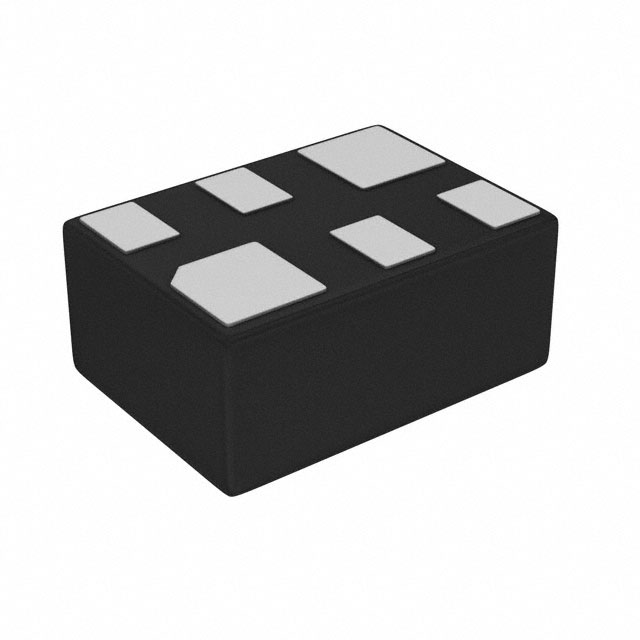

Mosfet Array 20V 220mA (Ta), 127mA (Ta) 125mW (Ta) Surface Mount 6-XLLGA (0.9x0.65)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-XFLGA |
| Mounting Type | Surface Mount |
| Configuration | N and P-Channel Complementary |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 125mW (Ta) |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 220mA (Ta), 127mA (Ta) |
| Input Capacitance (Ciss) (Max) @ Vds | 12.3pF @ 15V, 12.8pF @ 15V |
| Rds On (Max) @ Id, Vgs | 1.5Ohm @ 100mA, 4.5V, 5Ohm @ 100mA, 4.5V |
| Gate Charge (Qg) (Max) @ Vgs | - |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Supplier Device Package | 6-XLLGA (0.9x0.65) |
| Grade | Automotive |
| Qualification | AEC-Q101 |
