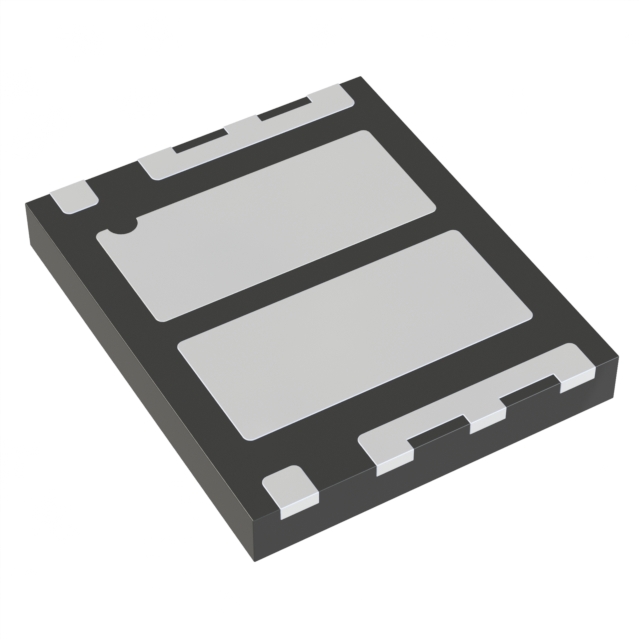

NTMFC013NP10M5L
MOSFET N/P-CH 100V 9A 8WDFNManufacturer: onsemi
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 100V 9A (Ta), 60A (Tc), 5A (Ta), 36A (Tc) 2.7W (Ta), 102W (Tc) Surface Mount 8-WDFN (5x6)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerWDFN |
| Mounting Type | Surface Mount |
| Configuration | N and P-Channel |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 2.7W (Ta), 102W (Tc) |
| Drain to Source Voltage (Vdss) | 100V |
| Current - Continuous Drain (Id) @ 25°C | 9A (Ta), 60A (Tc), 5A (Ta), 36A (Tc) |
| Input Capacitance (Ciss) (Max) @ Vds | 1345pF @ 50V, 2443pF @ 50V |
| Rds On (Max) @ Id, Vgs | 13.4mOhm @ 8.5A, 10V, 36mOhm @ 8.5A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 23nC @ 4.5V, 30nC @ 10V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 3V @ 158µA, 4V @ 158µA |
| Supplier Device Package | 8-WDFN (5x6) |
