NTLJD4116NT1G
MOSFET 2N-CH 30V 2.5A 6WDFNManufacturer: onsemi
Categories: FET, MOSFET Arrays
Quality Control: Learn More

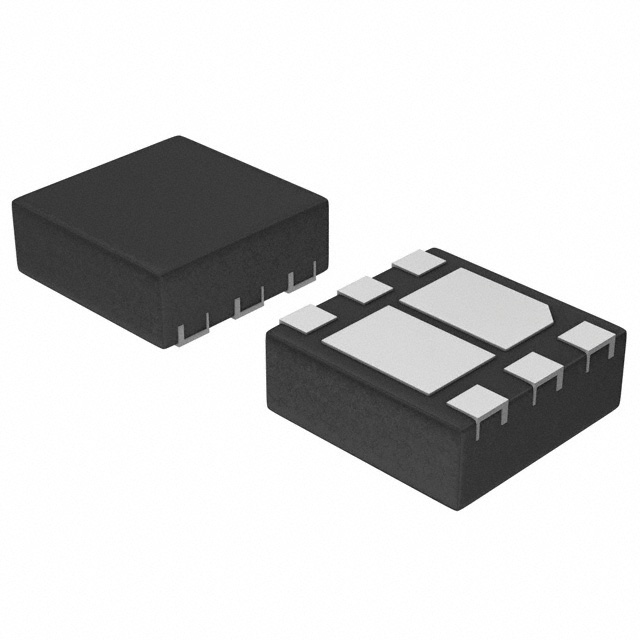

Mosfet Array 30V 2.5A 710mW Surface Mount 6-WDFN (2x2)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | 6-WDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 710mW |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 2.5A |
| Input Capacitance (Ciss) (Max) @ Vds | 427pF @ 15V |
| Rds On (Max) @ Id, Vgs | 70mOhm @ 2A, 4.5V |
| Gate Charge (Qg) (Max) @ Vgs | 6.5nC @ 4.5V |
| FET Feature | Logic Level Gate |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Supplier Device Package | 6-WDFN (2x2) |
Request a Quote
