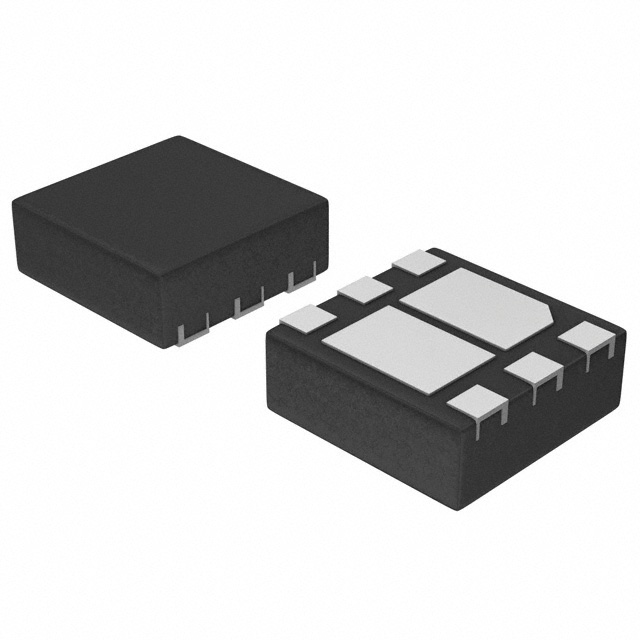

NTLJD3119CTBG
MOSFET N/P-CH 20V 2.6A 6WDFNManufacturer: onsemi
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 20V 2.6A, 2.3A 710mW Surface Mount 6-WDFN (2x2)
Additional Information
Series: µCool™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-WDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Configuration | N and P-Channel |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 710mW |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 2.6A, 2.3A |
| Input Capacitance (Ciss) (Max) @ Vds | 271pF @ 10V |
| Rds On (Max) @ Id, Vgs | 65mOhm @ 3.8A, 4.5V |
| Gate Charge (Qg) (Max) @ Vgs | 3.7nC @ 4.5V |
| FET Feature | Logic Level Gate |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Supplier Device Package | 6-WDFN (2x2) |
| Grade | - |
| Qualification | - |
