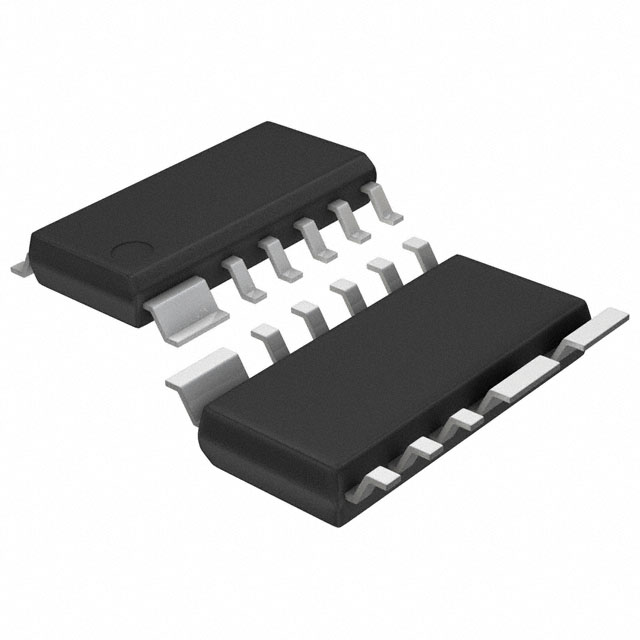

FDQ7698S
MOSFET 2N-CH 30V 12A/15A 14SOManufacturer: onsemi
Categories: FET, MOSFET Arrays
Quality Control: Learn More
The onsemi PowerTrench® FDQ7698S is a dual N-channel MOSFET array designed for efficient power switching applications. This component features a 30V drain-source voltage rating and supports continuous drain currents of 12A and 15A at 25°C. The device is characterized by its low Rds(on) of 7.5mOhm at 15A and 10V, and a logic-level gate feature. Key parameters include a maximum gate charge of 17nC at 5V and input capacitance (Ciss) of 1324pF at 15V. With a maximum power dissipation of 1.1W and 1.3W, the FDQ7698S is suitable for surface mounting in a 14-SOIC package. The operating temperature range is -55°C to 150°C (TJ). This MOSFET array finds application in various industries including automotive, industrial automation, and consumer electronics.
Additional Information
Series: PowerTrench®RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-SOIC (0.154"", 3.90mm Width), 11 Leads, Fused Leads |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 1.1W, 1.3W |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 12A, 15A |
| Input Capacitance (Ciss) (Max) @ Vds | 1324pF @ 15V |
| Rds On (Max) @ Id, Vgs | 7.5mOhm @ 15A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 17nC @ 5V |
| FET Feature | Logic Level Gate |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Supplier Device Package | 14-SO |
