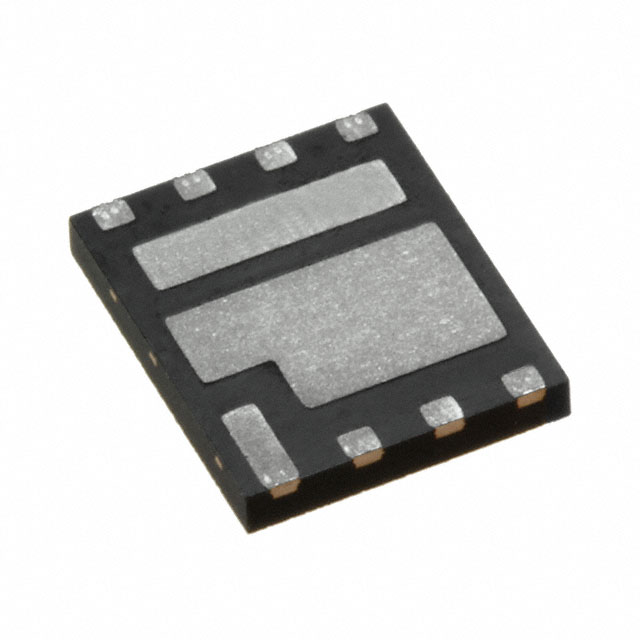

FDPC8014S
MOSFET 2N-CH 25V 20A PWRCLIP56Manufacturer: onsemi
Categories: FET, MOSFET Arrays
Quality Control: Learn More
The onsemi FDPC8014S is a PowerTrench® series MOSFET array featuring two asymmetrical N-channel devices. This component is designed for high-efficiency power management applications, commonly found in automotive, industrial, and computing sectors. It offers a 25V drain-to-source voltage (Vdss) with continuous drain current ratings of 20A and 41A. The low on-resistance of 3.8mOhm at 20A and 10V (Vgs) ensures minimal conduction losses. Key specifications include a logic level gate, a maximum gate charge (Qg) of 35nC at 10V, and input capacitance (Ciss) of 2375pF at 13V. The device dissipates a maximum power of 2.1W and 2.3W. Packaged in an 8-PowerWDFN (Power Clip 56) for surface mounting, it operates across a wide temperature range of -55°C to 150°C (TJ). This component is supplied in tape and reel packaging.
Additional Information
Series: PowerTrench®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerWDFN |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) Asymmetrical |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 2.1W, 2.3W |
| Drain to Source Voltage (Vdss) | 25V |
| Current - Continuous Drain (Id) @ 25°C | 20A, 41A |
| Input Capacitance (Ciss) (Max) @ Vds | 2375pF @ 13V |
| Rds On (Max) @ Id, Vgs | 3.8mOhm @ 20A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 35nC @ 10V |
| FET Feature | Logic Level Gate |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Supplier Device Package | Power Clip 56 |
