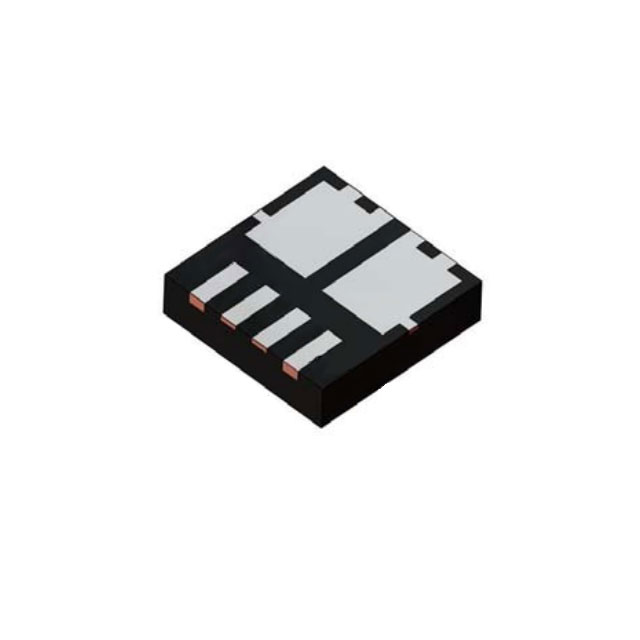

FDPC4044
MOSFET 2N-CH POWERCLIP-33Manufacturer: onsemi
Categories: FET, MOSFET Arrays
Quality Control: Learn More
The onsemi PowerTrench® FDPC4044 is a 2 N-Channel MOSFET array designed for high-efficiency power switching applications. This component, packaged in an 8-PowerWDFN (Powerclip-33), features a common drain configuration and logic level gate drive. Key electrical characteristics include a low Rds(on) of 4.3mOhm at 27A and 10V, and a gate charge (Qg) of 49nC at 10V. Input capacitance (Ciss) is specified at 3215pF maximum at 15V. With a maximum power dissipation of 1W and an operating temperature range of -55°C to 150°C, the FDPC4044 is suitable for demanding applications in sectors such as automotive, industrial power management, and consumer electronics. The device is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: PowerTrench®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerWDFN |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) Common Drain |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 1W |
| Drain to Source Voltage (Vdss) | - |
| Current - Continuous Drain (Id) @ 25°C | - |
| Input Capacitance (Ciss) (Max) @ Vds | 3215pF @ 15V |
| Rds On (Max) @ Id, Vgs | 4.3mOhm @ 27A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 49nC @ 10V |
| FET Feature | Logic Level Gate |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Supplier Device Package | Powerclip-33 |
